Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Model
- HT786A
- Product Type
- High-Temperature Industrial Accelerometer
- Housing Material
- 316L Stainless Steel
- Sensitivity
- 100mV/g, ±5% Tolerance
- Mounting
- 1/4-28 UNF Tapped Hole
- Core Design
- Extended Range Components (for Long-Lasting Operation)
- Frequency Response
- ±5% 3–5,000 Hz, ±10% 1–9,000 Hz, ±3 dB 0.5–14,000 Hz
- Resonance Frequency
- 30 kHz
- Acceleration Range
- 80g peak
- Vibration Limit
- 500g peak
- Shock Limit
- 5,000g peak
- Temperature Range
- -50°C to +165°C
- Weight
- ~145 g
- Mounting
- 1/4-28 UNF tapped hole, SF6 stud included
- Output Impedance
- 100Ω max
- Sensing Element
- PZT ceramic / shear
- Documents
- Product Specs
Product Description

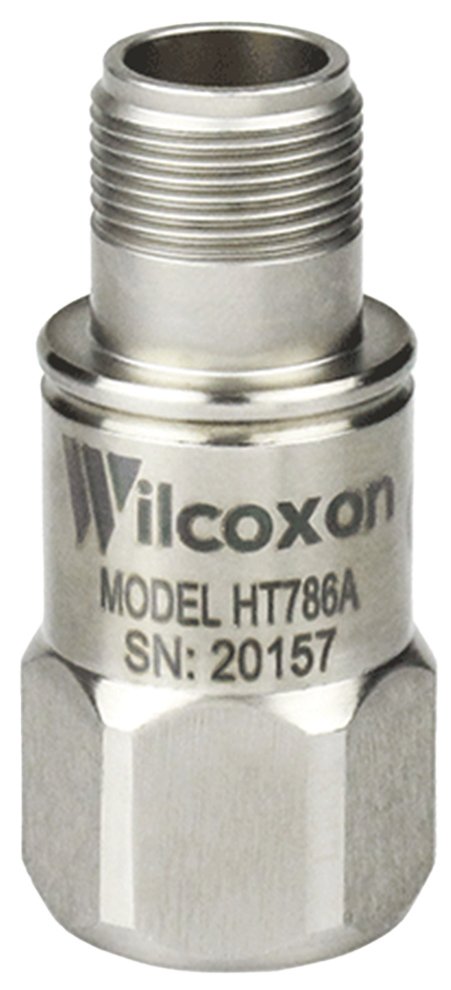

The Wilcoxon Sensing Technologies HT786A accelerometer is a high temperature rated sensor that is built with extended range components for long-lasting operation. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The HT786A is case isolated, and has a 100mV/g, ±5% sensitivity tolerance.
The HT786A is API 670 compliant, suitable for continuous vibration monitoring on turbines, compressors, and high-temperature rotating equipment in petrochemical and power generation plants. Manufactured in an ISO 9001 facility.
Features
- 80g peak acceleration range
- 500g peak vibration limit
- 5,000g peak shock limit
-
Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 1 to 9,000Hz
- ±3 dB: 0.5 to 14,000Hz
- 30kHz resonance frequency
- 100Ω max output impedance
- PZT shear sensing element
- Hermetic sealing
- MIL-C-5015 connector
