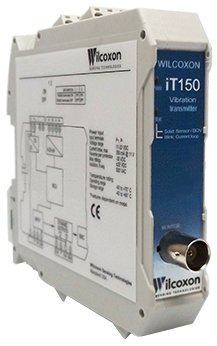

The Wilcoxon Sensing Technologies iT150 vibration transmitter accepts input from an IEPE accelerometer, piezovelocity sensor or dual output (vibration and temperature) sensor, and outputs the overall vibration level as a 4-20 mA signal. Output mode options include 4-20mA proportional to acceleration, velocity, and displacement. Dual-output sensors are accommodated with a secondary 4-20mA output reflecting the temperature signal. Factory configured full-scale range and frequency bandwidth are user-selected.

Sensor sensitivity options include accelerometer: 10, 100, 500mV/g; piezovelocity: 10, 100, 500mV/ips; and dual output: 10 mV/°C. Frequency response for acceleration is 0.2Hz to 20kHz (-3dB, -0.1dB), and for velocity is 0.2Hz to 5kHz. Maximum dynamic signal input is 20 volts peak-to-peak.

The iT150 features DIN rail mounting and a front panel BNC for dynamic signal output. It is manufactured in an ISO 9001 facility. Loop load resistance is 500Ω maximum with accuracy of ±0.2% of full scale.
