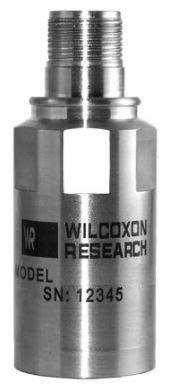

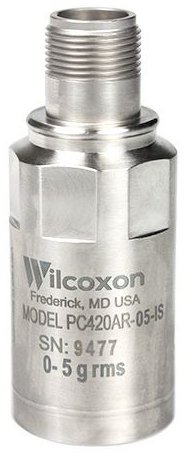

The Wilcoxon Sensing Technologies PC420A-IS series vibration transmitter is certified intrinsically safe for use in hazardous areas. It provides a 4-20mA output proportional to acceleration vibration, allowing for continuous trending of overall machine vibration. This trend data can easily be compared against standard vibration guides, can alert users to changing machine conditions, and can help guide maintenance in prioritizing the need for service. The choice of RMS, peak equivalent, or true peak output allows the user to choose the sensor that best fits their requirements. The PC420A-IS is easily integrated into existing process control systems.

The PC420A-IS is constructed with 316L stainless steel and is corrosion-resistant. It features a 1/4-28 tapped hole for mounting and has a 2-pin MIL-C-5015 style output connector and an R6 type mating connector. The PC420A-IS is manufactured in an ISO 9001 facility.

Features

• 4-20mA output proportional to peak acceleration
• 5, 10, or 20g full-scale measurement range
• ±5% tolerance at full scale
• Frequency response:
  • ±10%: 10Hz to 1kHz
  • ±3 dB: 4Hz to 2kHz
• ±2% repeatability
• 600Ω max loop resistance at 24VDC
• 250g peak vibration limit
• 2,500g peak shock limit
• Hermetically sealed
• ESD, overload, and reverse wiring protection
• PZT ceramic/shear sensing element
• Top exit, 2-pin, MIL-C-5015 style output connector
• Intrinsic safety certification for Class I, Div 1 hazardous areas
