Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Number
- PC420A-EX Series
- Type
- Explosion-Proof Vibration Transmitter
- Output
- 4-20 mA proportional to acceleration
- Measurement Range
- 5g, 10g, or 20g full-scale
- Accuracy
- ±5% at full scale
- Repeatability
- ±2%
- Frequency Response
- ±10% 10Hz-1kHz, ±3dB 4Hz-2kHz
- Housing Material
- 303 Stainless Steel
- Sealing
- Epoxy Sealed
- Mounting Thread
- 3/8-24 x 3/8 depth tapped hole
- Connection
- Top exit, 13ft 18 AWG flying leads
- Vibration Limit
- 250g peak
- Shock Limit
- 2,500g peak
- Loop Resistance
- 700Ω max at 24VDC
- Protection
- ESD, Overload, Reverse Wiring
- Sensing Element
- PZT Ceramic / Shear
- Certifications
- Class I, II, III, Div 1, 2; ATEX
- Operating Temperature
- -40°C to +105°C
- Weight
- ~200 g
- Sensing Element
- PZT Ceramic / Shear
- Application
- Hazardous Location Monitoring, Industrial Machinery
Product Description

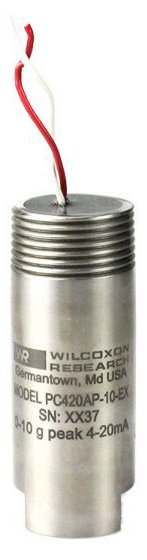

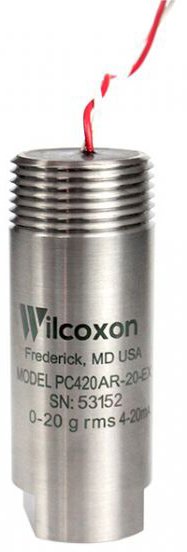

The Wilcoxon PC420A-EX series explosion-proof vibration transmitter is certified for use in hazardous locations, providing reliable 4-20mA output proportional to acceleration vibration. This enables continuous trending of overall machine vibration, allowing comparison against standard vibration guides, alerting users to changing conditions, and guiding maintenance prioritization. Available with RMS, peak equivalent, or true peak output options to match specific application requirements.
Constructed with corrosion-resistant 303 stainless steel, the PC420A-EX features a 3/8-24 mounting thread, included SF20-2 mounting stud, and 13-foot 18 AWG output leads. Each unit is manufactured in an ISO 9001 facility.
Features
- 4-20mA output proportional to peak acceleration
- 5g, 10g, or 20g full-scale measurement range
- ±5% tolerance at full scale
-
Frequency response:
- ±10%: 10Hz to 1kHz
- ±3 dB: 4Hz to 2kHz
- ±2% repeatability
- 700Ω max loop resistance at 24VDC
- 250g peak vibration limit
- 2,500g peak shock limit
- Epoxy sealed
- ESD, overload, and reverse wiring protection
- PZT ceramic / shear sensing element
- Top exit, flying leads connection
- Class I, II, III, Div 1, 2; ATEX approvals
