Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Model
- 786B-10
- Product Type
- General Purpose Accelerometer
- Housing Material
- Corrosion-Resistant 316L Stainless Steel
- Sensitivity
- 100mV/g
- Tolerance
- ±10%
- Availability
- Usually ships in 5-7 business days
- Part Number
- 786B-10
- Documents
- Product Specs
- Warranty
- One Year
Product Description

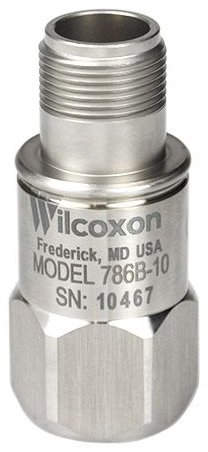

The Wilcoxon Sensing Technologies 786B-10 general purpose accelerometer is designed for long-term, reliable use. It is constructed with corrosion-resistant 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 786B-10 is case isolated and internally shielded and features reverse wiring protection.
The 786B-10 is manufactured in an ISO 9001 facility.
Features
- Dynamic vibration (IEPE) sensor output
- 100mV/g sensitivity
- ±10% sensitivity tolerance
- 80g peak acceleration range
-
Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 1 to 9,000Hz
- ±3 dB: 0.5 to 14,000Hz
- 30kHz resonance frequency
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- PZT, shear sensing element design
