Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Number
- General Purpose
- Type
- General Purpose Accelerometer
- Sensitivity
- 100 mV/g
- Sensitivity Tolerance
- ±5%
- Output
- Side Exit
- Cable
- 16 ft J9T2A Teflon Jacketed Integral Cable
- Application
- General Purpose Industrial Monitoring
- Availability
- Usually ships in 2-3 weeks
- Part Number
- 787F
- Documents
- Product Specs
- Warranty
- One Year
Product Description

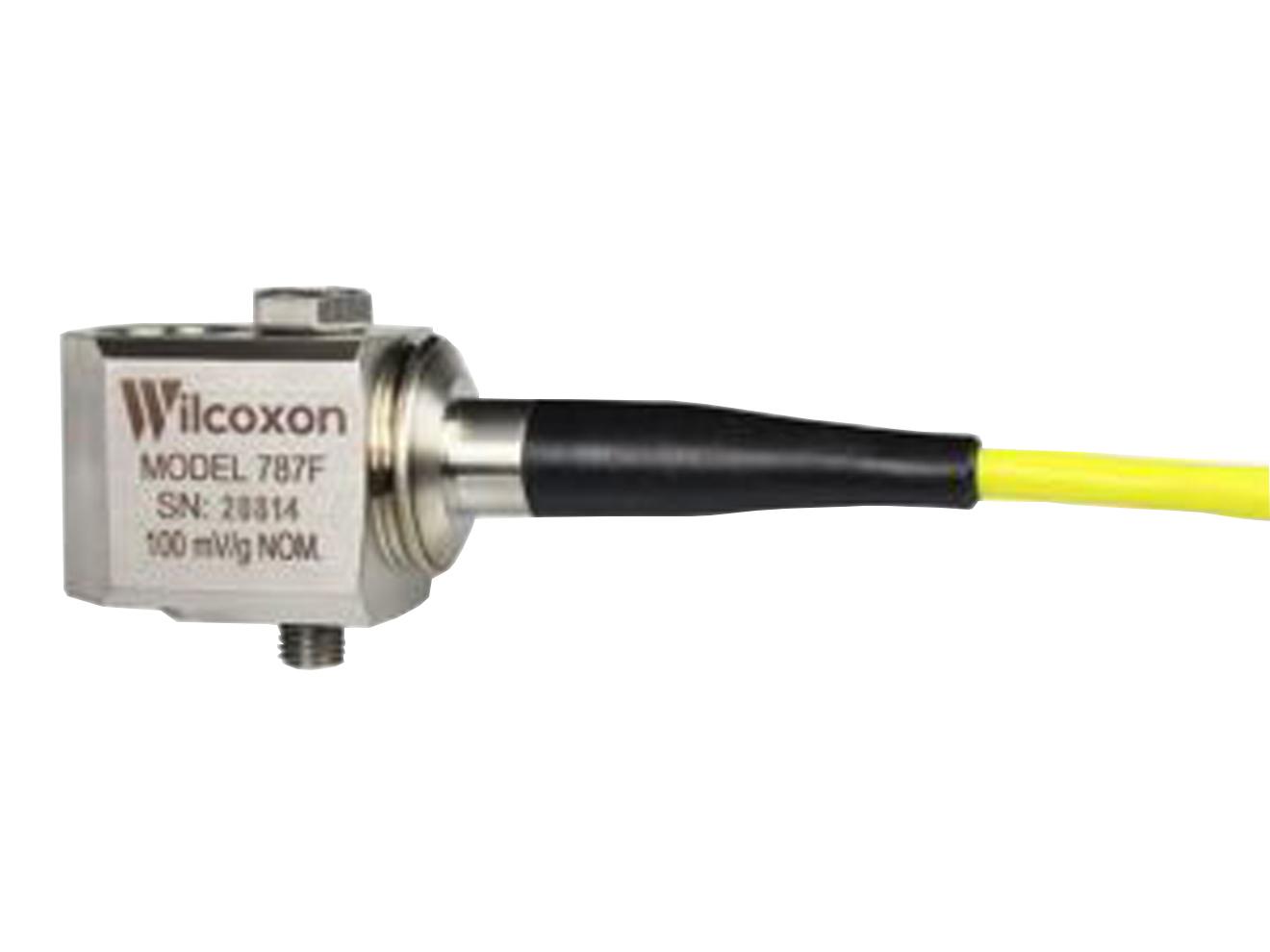

The Wilcoxon general purpose accelerometer is an industrial accelerometer sensor built for general purpose use. It has a 100 mV/g sensitivity, ±5% sensitivity tolerance and is low profile with side exit 16' J9T2A Teflon jacketed integral cable. The 787F has a 100 psi pressure rating and is case isolated.
Features
- Corrosion resistant
- Hermetic design
- 100 psi pressure rating
- ESD, EMI/RFI and reverse wiring protection
- 16 ft Integral cable
- Dynamic vibration (IEPE)
- 100 mV/g sensitivity
- ±5% sensitivity tolerance
- 0.5Hz to 10,000 Hz frequency response ±3dB
- 22 kHz resonance frequency
- -50 to 120°C temperature range
