Product Specifications
- Manufacturer
- Wilcoxon Sensing Technologies
- Product Model
- 786C
- Product Type
- General Purpose Accelerometer (Dynamic Vibration Sensor)
- Sensitivity
- 100 mV/g, ±5% Tolerance
- Output Type
- IEPE (Integrated Electronics Piezoelectric)
- Connector
- Top-Exit BNC Connector
- Application
- Industrial Vibration Monitoring & Detection
- Availability
- Usually ships in 5-7 business days
- Part Number
- 786C
- Documents
- Product Specs
- Warranty
- One Year
Product Description

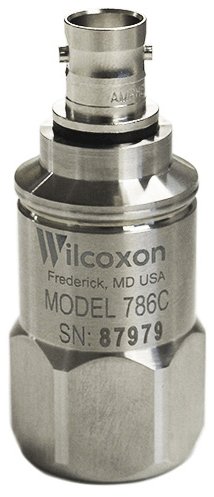

Wilcoxon Sensing Technologies 786C General Purpose Accelerometer,General purpose vibration sensor, 100 mV/g sensitivity, ±5% sensitivity tolerance, top exit BNC connector.
Features
- Dynamic vibration (IEPE) sensor output
- 100mV/g sensitivity
- ±5% sensitivity tolerance
- 80g peak acceleration range
-
Frequency response:
- ±10%: 1 to 9,000Hz
- ±3 dB: 0.5 to 14,000Hz
- 30kHz resonance frequency
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- BNC connector
- 1/4-28 UNF tapped hole and SF6 mounting stud (included)
- IP67 protection, watertight epoxy seal
