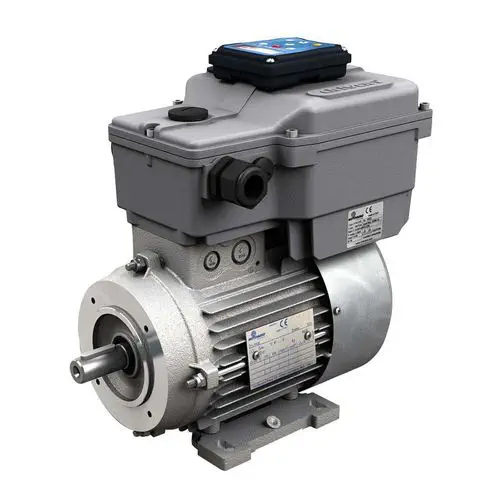

The DV Drivon is MOTOVARIO's integrated motor-inverter series — a motor and full variable frequency drive housed in a single compact unit. By eliminating the separate VFD panel, motor cable, and associated EMC filtering, the Drivon reduces installation footprint, wiring complexity, and commissioning time for pump, fan, and conveyor applications.

What power ratings and supply voltages are available?

The DV spans two chassis sizes covering 0.25 to 5.5 kW. The 230 V class (200–260 VAC, single- or three-phase) delivers 0.25–1.5 kW with speeds to 2,500 rpm. The 400 V class (360–480 VAC, three-phase) extends to 5.5 kW with speeds to 3,000 rpm. Extensions to 7.5 kW are planned. Both classes operate at 47–63 Hz input frequency.

How does the FOC vector control perform at low speed?

Sensorless Field-Oriented Control (FOC) with MOTOVARIO's Vectorial Check algorithm maintains constant motor torque over a wide frequency range without requiring servo-ventilation at low rpm. The drive auto-tunes to the connected load, adapting dynamics on the fly. Flying motor restart capability calculates the correct voltage and frequency to re-engage a coasting motor without tripping — critical for fan and pump applications subject to draft or backflow.

What communication and configuration options are included?

Modbus RTU and CANopen DSP are standard on-board, with Profibus DPV1 available as an option. A built-in USB port connects to MOTOVARIO's PC software for configuration, monitoring, and oscilloscope-style diagnostics. The removable keypad — with tool-free mounting — stores and copies parameter sets across multiple drives for rapid fleet commissioning. An optional dynamic braking module with energy recovery reduces operating costs in cyclic applications.
