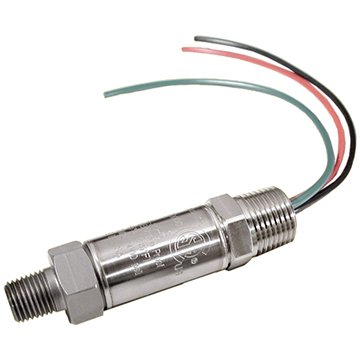

The Kobold KP46 explosion-proof pressure transmitter features Class 1, Division 1 and 2 hazardous location approval per CSA standard 30 and UL standard 1203. All Kobold KP46 explosion-proof pressure transmitters require a 10 to 28 VDC power supply and provide a 2-wire, 4 to 20mA analog output. Pressure is measured by the KP46 to within 0.25% best fit, straight line accuracy.

The Kobold KP46 explosion-proof pressure transmitter is available in pressure ranges from 0 to 50 PSIG up to 0 to 20,000 PSIG. Ranges up to 10,000 PSIG feature a 1/4 inch NPT process connection and 316L stainless steel wetter materials while ranges above 10,000 PSIG move to a 1/2 inch NPT connection and 17-4PH stainless steel. The KP46's wetted materials feature corrosion resistance that complies with NACE MR0175.
