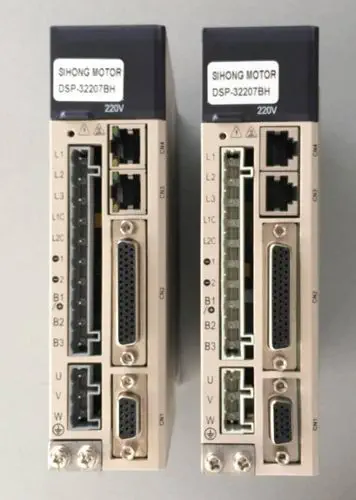

The DSP-32207BH from Shanghai Siheng Motor occupies a distinct category between conventional open-loop stepper drives and full servo systems — often called a hybrid servo drive. It drives 3-phase NEMA 34 and NEMA 42 stepper motors with closed-loop feedback from a 1000 PPR incremental encoder mounted on the motor shaft. The 32-bit DSP control chip continuously compares commanded position against actual encoder-measured position using an advanced angle control and vector control algorithm. When the motor is in position, output current is automatically reduced to minimize heating; when the encoder detects a position error approaching one full step (indicating incipient stall), the driver instantly increases phase current to correct the error before a lost step occurs.

How does closed-loop stepper control differ from open-loop micro-stepping?

An open-loop stepper driver blindly outputs phase current pulses assuming the rotor follows. If load torque exceeds motor capacity at speed — during acceleration, a tool engagement, or a momentary mechanical bind — steps are lost silently and the controller has no knowledge of the position error. The DSP-32207BH's encoder feedback loop detects any angular deviation from the commanded trajectory and compensates in real time. The driver also outputs a tracking error alarm (fault relay) if the position error exceeds a programmable threshold, allowing the host controller to halt the machine rather than continue processing with incorrect tool position. This closed-loop architecture achieves the position certainty of a servo system while retaining the high torque-at-low-speed characteristic, full holding torque at standstill, and lower system cost of stepper motor technology — a combination particularly valued in CNC engraving, laser cutting, and automated assembly equipment.

What do the model number codes indicate for variant selection?

The DSP-32207BH part number encodes the driver's key specifications: DSP identifies the driver product family, 3 indicates 3-phase motor compatibility, 220 denotes the 220 VAC nominal input voltage rating, 7 is the maximum output current (7.0 A), and BH designates the closed-loop (闭环) variant. The 150–240 VAC input range allows the driver to operate directly from single-phase AC mains without a step-down transformer or DC power supply — a practical advantage in machine tool electrical cabinets where 220 VAC distribution is standard but low-voltage DC buses are not.
