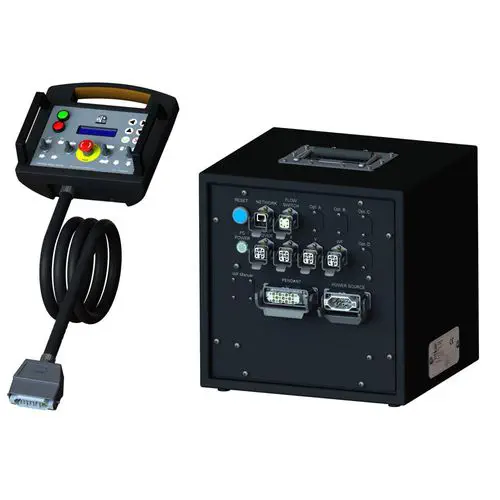

The D3 is Welding Alloys Group's proprietary automation control platform for automated hardfacing and cladding machines. It is available in two form factors: the D3 Touch — a fixed panel-mount touchscreen for workshop installations such as flat plate cladders, roll cladders, and rotary plate cladders — and the D3 Pendant — a lightweight handheld unit used with portable field equipment like the Gauge Corner Restoration (GCR) welding machine for railway track maintenance. Both share the same control architecture and operator interface.

What does the D3 control system manage?

The D3 coordinates multiple motion axes — welding head travel, wire feed, oscillation, and part rotation — with real-time synchronisation. It stores part-specific welding programs with parameters for each process (FCAW-S, FCAW-G, GMAW, SAW), logs weld data for quality traceability, and provides built-in condition monitoring with remote diagnostic access. The touchscreen GUI presents process parameters, axis positions, and machine status on one screen, reducing operator training time compared to multi-panel conventional welding controls.
