Product Specifications
- Brand
- Crystal Engineering
- Model Number
- CrystalCalHP
- Type
- Hydraulic Pressure Calibration System
- Pressure Range
- To 15,000 psi (1000 bar)
- Accuracy
- 0.1% of reading
- Vacuum
- -12.5 psi
- Documents
- Product Manual, Product Specs (2 Files)
Product Description

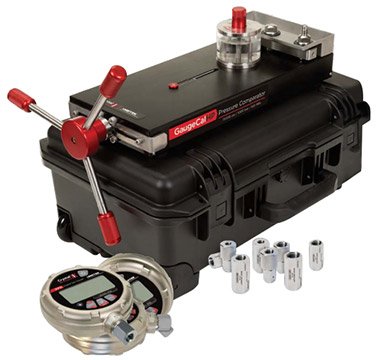

The Ametek Crystal CrystalCalHP Pressure Gauge Calibration System is a portable gauge and transmitter calibration system that is 7 to 10 times faster than a deadweight tester. It allows you to do a 10 point up and down calibration in less than 3 minutes including printing out a calibration certificate.
The Crystal GaugeCalHP Pressure Comparator is a self-contained, precision hydraulic pressure comparator intended for the calibration of pressure gauges rated up to 15000 psi/1000 bar/100 MPa. You may fill the GaugeCalHP with your choice of water or oil.
The GaugeCalHP provides faster calibration than deadweight testers and most automated pressure controllers. You can calibrate most gauges, transmitters, pressure safety valves, sensors, and switches in less than ten minutes (5 to 10 test points, increasing and decreasing pressure) using the methods described in this manual.
Hydraulic Pressure Calibration System | Crystal CrystalCalHP
Product Specifications
- Brand
- Crystal Engineering
- Model Number
- CrystalCalHP
- Type
- Hydraulic Pressure Calibration System
- Pressure Range
- To 15,000 psi (1000 bar)
- Accuracy
- 0.1% of reading
- Vacuum
- -12.5 psi
- Documents
- Product Manual, Product Specs (2 Files)
