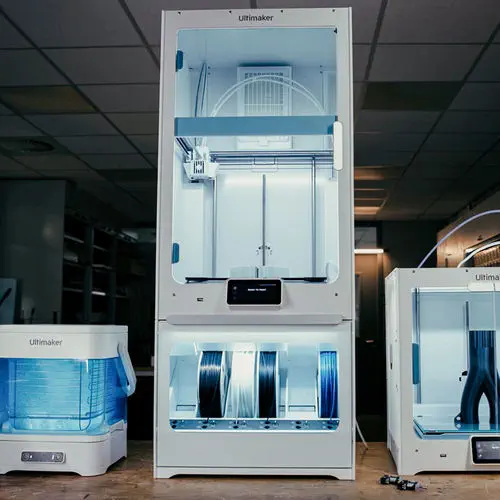

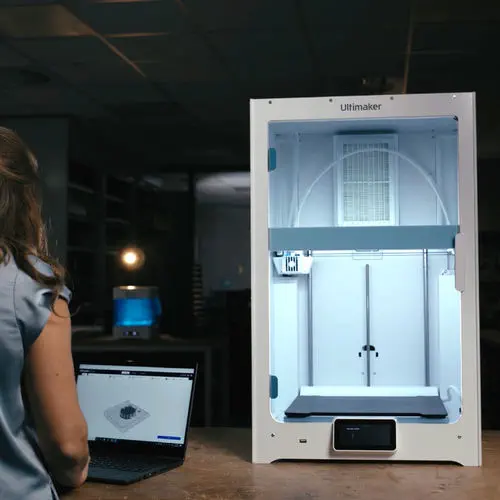

The UltiMaker S7 Pro Bundle packages the S7 3D printer with two integrated peripherals — the Material Station and Air Manager — into a single, self-contained professional FFF production cell. At its core, the S7 retains the dual-extrusion architecture of UltiMaker's S-series platform: two Print Cores with auto-nozzle lifting, a 330 × 240 × 300 mm build volume, and the PEI-coated flexible steel build plate introduced with the S7. The Pro Bundle extends this foundation with automated material handling, humidity-controlled filament storage, and active air filtration, transforming the standalone printer into a walk-away production system suitable for continuous operation in engineering offices, design studios, and light manufacturing environments.

What does the Material Station add over a standalone S7?

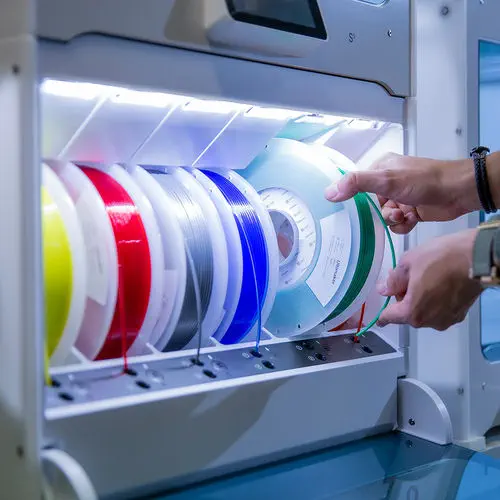

The Material Station is a 6-spool automated material handling system that docks directly beneath the S7. Each spool bay reads the filament type, color, and remaining quantity from an embedded NFC tag on the UltiMaker spool, automatically loading the correct material profile in UltiMaker Cura. When a spool runs out mid-print, the Station switches to a second spool of the same material without pausing the job — essential for overnight prints that exceed a single spool capacity. A desiccant-based humidity control system maintains sub-15% relative humidity inside the sealed bays, preventing moisture absorption in hygroscopic materials like PVA, Nylon, and TPU. The Station also pre-heats the filament path to the extruder, reducing drag and improving feed consistency on flexible materials.

How does the PEI flexible build plate improve the workflow?

The S7 replaced the S5's glass bed with a PEI-coated flexible steel plate held by 25 magnets and 4 alignment pins. PEI (polyetherimide) provides strong adhesion during printing — no glue stick, tape, or hairspray needed for most materials — and releases cleanly when the plate cools. To remove a finished part, the operator lifts the plate off the magnetic bed with one hand, flexes it gently, and the part pops free. The pins ensure the plate returns to the same position with no re-leveling. The inductive bed leveling sensor measures the plate surface at 25 points before each print, building a height map that the printer's active Z-compensation references throughout the job. This sensor-based approach eliminates manual leveling, replacing the S5's manual calibration procedure with a fully automated process.

What does the Air Manager filtration do?

The Air Manager mounts on top of the S7 enclosure and pulls air through an EPA/PA filter cartridge rated to capture up to 95% of ultrafine particles (UFPs) emitted during FFF printing. A secondary activated carbon layer adsorbs volatile organic compounds. The filtered air recirculates inside the enclosed build chamber, maintaining a stable internal temperature, rather than venting to the room. The Air Manager communicates with the printer via the NFC interface, tracking filter life and prompting replacement. For materials with known emission profiles — ABS, ASA, PC, Nylon — the Air Manager automatically increases fan speed during printing to match the predicted emission rate.
