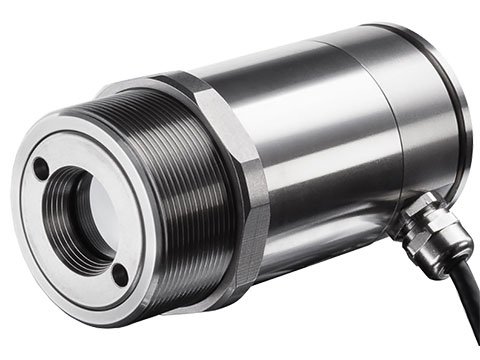

The Optris CSlaser 2M infrared temperature sensor features a short measuring wavelength of 1.6µm for precise temperature measurement of metal, metal oxides, and ceramics. It has integrated dual laser aiming for accurate alignment and focal positioning of the sensor. A wide range of optics allows the CSlaser 2M to adapt to many different applications .

Two models are available: the 2ML covers 482 to 1472°F with 150:1 optical resolution; the 2MH covers 725 to 2912°F with 300:1 optical resolution. Response time is 10ms. Emissivity is adjustable from 0.1 to 1.1 .

The sensor features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCSUSBK). Outputs include 2-wire 4-20mA, open collector alarm, and digital output. A programmable functional input is also included .

The Optris Compact Connect temperature analysis software is available as a free download. The sensor operates on 5 to 30VDC power supply and is IP65 NEMA-4 rated. Cable is sold separately .
