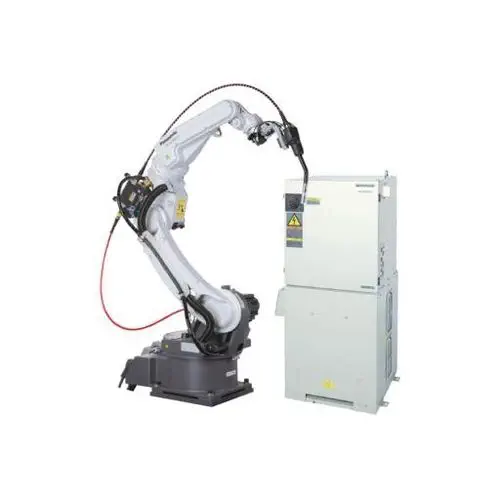

The Panasonic GIII TAWERS (The Arc Welding Robot System) represents a departure from conventional welding robot architecture. Instead of a separate robot controller and welding power source connected by interface cables, the GIII integrates a 100 kHz inverter pulse power source directly into the robot controller cabinet. This tight coupling allows the welding waveform and robot motion to be synchronized at the software level — the controller can adjust torch angle, travel speed, and arc characteristics as a single coordinated variable set rather than as independent subsystems communicating over a fieldbus. The result is faster arc start, smoother bead appearance, and reduced spatter on challenging material combinations.

What is the difference between standard GIII TAWERS and High Power GIII TAWERS?

The standard GIII TAWERS integrates a 350A inverter pulse power source (YA-2KD35) suitable for most mild steel, stainless steel, and aluminum applications up to medium material thickness. The High Power variant upgrades to a 500A power source for heavy-plate fabrication, thick aluminum sections, and high-deposition-rate welding where the additional current headroom reduces duty-cycle constraints. Both variants use the same GIII controller platform, the same manipulator range (TM and TL series), and the same software suite. The choice is driven by the maximum material thickness and deposition rate the production line requires — not by differences in robot capability.

Which Panasonic manipulator models work with the GIII TAWERS?

Panasonic offers two manipulator families for the GIII system. The TM series provides six models from the compact TM-1100 (6 kg, 1,163 mm reach) through the extended TM-2000 (6 kg, 2,011 mm), with the TM-1600 as a specialist 4 kg variant optimized for precision arc welding at intermediate reach. The TL series adds two longer-reach models — TL-1800 (8 kg, 1,801 mm) and TL-2000 (6 kg, 1,999 mm) — designed for larger workpieces and heavier torch packages. Torch cabling options include separate (external routing), through-arm (internal routing for collision avoidance), and external (TL series). All models share ±0.08 mm repeatability (TM-2000 and TL-2000 at ±0.10–0.15 mm) and floor or ceiling mounting.

What welding processes does the GIII TAWERS support, and can it perform TIG welding?

Despite the work.txt description emphasizing TIG, the GIII TAWERS is primarily an arc welding platform covering MAG, MIG, CO₂, HD-Pulse, and aluminum MIG processes. DC TIG welding is supported as one of the available welding modes, making the system suitable for applications requiring the precision and cleanliness of TIG on stainless steel or thin-gauge materials alongside higher-productivity MIG/MAG processes on the same cell. The fully digital arc control supports Panasonic's proprietary SP-MAGII and SP-MAGI waveforms for mild steel and stainless, Zi-Tech/Zi-Pulse for galvanized steel, and active waveform technology on Active TAWERS models. A single GIII controller can manage up to 27 axes total — the 6 robot axes plus external positioners, gantries, and part manipulators.

Frequently Asked Questions

Can the GIII TAWERS perform automated TIG without filler wire?

Yes. The GIII supports DC TIG mode with or without filler wire feed. For autogenous TIG welding (no filler), the wire feed unit can be disabled, and the torch motion and arc power are controlled entirely through the robot program and synchronized welding parameters.

Does the integrated power source make maintenance more complex?

Panasonic designed the GIII with the power source as a modular unit within the controller cabinet — it can be replaced independently of the motion controller and servo drives. The integration eliminates external welding cables between controller and power source, reducing a common failure point in conventional separated systems. The fully digital inverter runs at 100 kHz on the primary side with secondary switching, and the internal cooling system uses indirect air circulation to keep contaminants out of the electronics.
