The Schuler Crossbar Robot 4.0 is a press-to-press transfer system that merges the flexibility of a 6-axis articulated industrial robot with the throughput and part-handling capability of Schuler's established crossbar feeder technology. Developed for automotive stamping lines, the robot travels overhead on an X-axis track mounted to the press uprights, picking parts from one die and placing them into the next — with full freedom to reorient components during transfer. The result is a system that eliminates idle stations between presses, supports up to four parts per stroke, and reaches 15 spm on press lines with spacing from 4.5 to 10 meters.

How does the Crossbar Robot 4.0 differ from a conventional 6-axis press-tending robot?

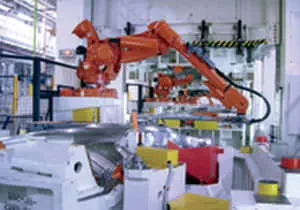

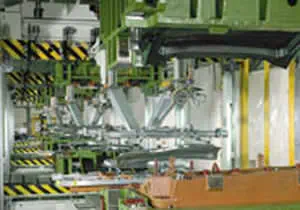

A standard 6-axis floor-mounted or pedestal-mounted robot serves one press from a fixed base. The Crossbar Robot 4.0 adds two structural axes: a horizontal feed axis that lets the entire robot traverse along the press line, and a tooling carrier axis that swivels the part gripper assembly. This 8-axis configuration means one robot can service multiple successive press stations — extracting a part from press 1, reorienting it during the traverse, and placing it into press 2 — without the intermediate turnover stations required by traditional mechanical transfer systems. The overhead mounting keeps the factory floor clear for scrap conveyors, die-change carts, and maintenance access. At 1,400 kg (down from 2,800 kg in the previous generation), the reduced mass improves dynamic response by approximately 20%.

What production modes does the Crossbar Robot 4.0 support?

The system handles single-part, double-part, and four-fold production — extracting multiple blanks or stampings from a single die stroke and transferring them in parallel. Tooling is fully compatible with existing Schuler Crossbar Feeder end-of-arm tooling, so shops that already operate Schuler crossbar lines can reuse their gripper and suction-cup assemblies. The robot's free programmability allows part reorientation during the stroke — flipping, rotating, or tilting — which is critical when die geometry in successive stations requires a different part orientation. For mixed-material lines processing both steel and aluminum outer skin panels, Schuler offers the DES 3.0 dynamic energy storage system that recovers braking energy and feeds it back into the DC link, reducing overall energy consumption by up to 30% compared to conventional resistive-braking designs.

Can the Crossbar Robot 4.0 be retrofitted onto existing press lines?

Yes. Schuler designed the Crossbar Robot 4.0 for both greenfield installations and brownfield retrofits. The overhead track mounts to existing press uprights without requiring foundation modifications, and the robot can be integrated with mechanical or hydraulic presses from any manufacturer. This makes it a candidate for upgrading older tandem press lines to automated transfer without replacing the presses themselves. Programming is performed via the operator panel at the robot, and the Industry 4.0 process data interface provides real-time monitoring, error reporting, and predictive maintenance data to the plant MES.

Frequently Asked Questions

What is the relationship between Schuler and Müller Weingarten?

Müller Weingarten AG was a German press manufacturer that merged into the Schuler Group. The Müller Weingarten brand now exists as a product line designation within Schuler Group's press and automation portfolio. The Crossbar Robot 4.0 is sold under the Schuler brand, with some legacy documentation referencing Schuler Müller Weingarten.

Does the Crossbar Robot 4.0 require an idle station between presses?

No. The robot's onboard part reorientation capability — combining 6-axis articulation with the linear travel axis — eliminates the need for idle or turnover stations between press stages. Parts are extracted, reoriented during the linear traverse, and placed directly into the next die.
