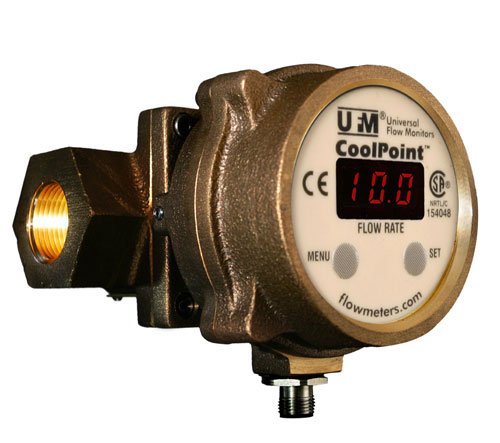

The Universal Flow Monitors (UFM) CoolPoint is a vortex flow meter made for water, water/glycol coolant or low viscosity fluid applications. The CoolPoint flow meter is available in connection sizes from 1/4" to 2" (25 to 200 GPM). The flow meter bodies are available in brass or 316 stainless steel, and PVDF sensors and Viton seals are standard. Optional PEEK sensors are used for high temperature applications with fluids above 150°F.

The UFM CoolPoint flow meters require an input power of 10-30 VDC and have both a standard 4-20mA flow rate transmitter and a solid state relay that can be configured as an alarm or a pulse output. The relay can be set to normally open or normally closed when configured as an alarm or, when configured for pulse output, the meter generates 100 pulses per gallon from the solid state relay except for the 2" meter which generates 25 pulses per gallon. Maximum pressure is 300 PSI (20 Bar) with ±2% of full scale accuracy and ±0.25% repeatability.

With no moving parts there is nothing to clog or wear and the 3-digit LED digital display is very easy to read. The display can be set to read in gallons or liters per minute and the 3/4" to 2" sized meters are available with an optional rotatable enclosure which allows the control box to be rotated in the field for greater readability. The standard electrical connection is a pin connector although pigtails or a junction box with a terminal strip are available. Temperature range is 32 to 210°F (2 to 99°C) with a 10:1 turndown ratio.
