Product Specifications
- Manufacturer
- Flowline
- Model Number
- EchoPod DL34
- Type
- Ultrasonic Level Transmitter
- Range
- 18 ft (5.5 m)
- Output
- 4-20 mA, 4 relays
- Dead Band
- 8 in (20 cm)
- Enclosure
- NEMA 6P, PVDF transducer
- Documents
- Product Manual, Product Specs
Product Description
The general purpose ultrasonic level transmitter provides continuous level measurement up to 18.0' (5.5m) with a 4-20 mA signal output, and is configured via our free Webcal software. The level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for day tank, skid, IBC, sump and process tank level applications.
Related Products
Resources & Documentation
Flowline EchoPod DL34 Ultrasonic Level Transmitter Datasheet PDF(608 KB)
PDF Document
Flowline EchoPod DL34 Ultrasonic Level Transmitter Manual PDF(962 KB)
PDF Document
Flowline EchoPod DL34 Ultrasonic Level Transmitter Quick Start Guide PDF(1005 KB)
PDF Document
Instrumart's Level Application Form(141 KB)
PDF Document
Flowline
Compare

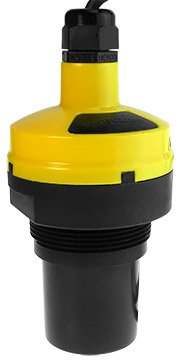

Ultrasonic Level Transmitter - 18ft Range | Flowline EchoPod DL34
