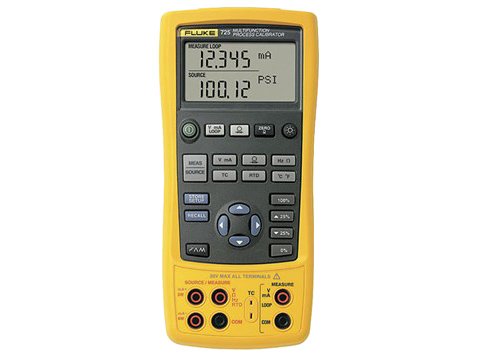

The Fluke 725 multifunction process calibrator is a powerful yet easy-to-use field calibrator. The measure and source functions test and calibrate almost any process parameter and displays input and output simultaneously on the screen.

Measure volts, mA, RTDs, thermocouples, frequency and ohms to test sensors and transmitters. Volts, mA, thermocouples, RTDs, frequency and ohms can be sourced or simulated. Measure or source pressure using Fluke 750P series modules.

The 725 can also source milliamps with simultaneous pressure measurement to conduct valve and I/P tests, support flow meter testing with its frequency and CPM functions, and perform fast linearity tests with the auto step and auto ramp features.

Frequently used test setups can be stored in memory for later use. The calibrator measures up to 30V and 24mA DC, resistance from 0 to 3200Ω, and frequency up to 10kHz.
