Product Specifications
Manufacturer:HOBO Data Loggers by Onset
Product Number:H21-USB
Type:Micro Station Data Logger
Smart Sensor Inputs:5
Maximum Data Channels:15
Sensor Network Cable Length:100 m (328 ft) maximum
Logging Interval:1 second to 18 hours
Memory:512 KB nonvolatile flash
Operating Range (Alkaline):-20°C to +50°C (-4°F to +122°F)
Operating Range (Lithium):-40°C to +70°C (-40°F to +158°F)
Battery Life:1 year typical (up to 5 sensors, 1 min logging interval)
Battery Type:4 AA 1.5V alkaline (included) or lithium
Communication:USB 2.0 direct
Enclosure:Weatherproof, NEMA 4X, IP66
Dimensions:17.04 x 11.94 x 4.47 cm (6.71 x 4.70 x 1.76 in)
Weight:414 g (14.6 oz)
Software:HOBOware and HOBOware Pro compatible
Documents: Product Manual, Product Specs (2 Files)
Product Description

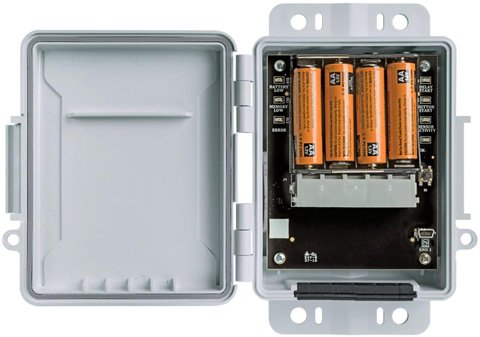

The HOBO H21-USB Micro Station Data Logger is a weatherproof data logger for multi-channel monitoring of microclimates. This battery-powered station accepts up to five plug-and-play Smart Sensors and has a hinged door to make sensor installation simple and quick.
The Micro Station is equipped with a built-in USB port for fast, efficient data readout to a computer, and integrated mounting tabs for easy installation. The weatherproof IP66 enclosure ensures reliable operation in harsh outdoor environments.
The logger supports logging intervals from 1 second to 18 hours with 512 KB of nonvolatile flash memory. It operates on four AA batteries: alkaline batteries provide -20°C to +50°C operating range, while lithium batteries extend operation to -40°C to +70°C. Typical battery life is one year with up to five sensors at a 1-minute logging interval.
The H21-USB is compatible with HOBOware and HOBOware Pro software for logger setup and data analysis. Smart sensors are sold separately.
