The Clickin CK-KE3IN1-KL is a fanless industrial box PC designed for demanding industrial environments. Available with Intel Celeron J1900 (quad-core) or J6412 (Elkhart Lake, quad-core) processors, it provides flexible performance options for automation, IoT, and edge computing applications. The fully enclosed design prevents dust ingress, ensuring reliable operation in harsh conditions.

Processor and Memory

The J6412 processor is based on the Elkhart Lake platform, delivering improved performance and efficiency over previous generations. The J1900 variant offers a cost-effective quad-core solution for basic automation tasks. Both options support up to 32GB of DDR4 system memory via a single SO-DIMM slot, providing ample capacity for data-intensive applications.

Rich I/O and Connectivity

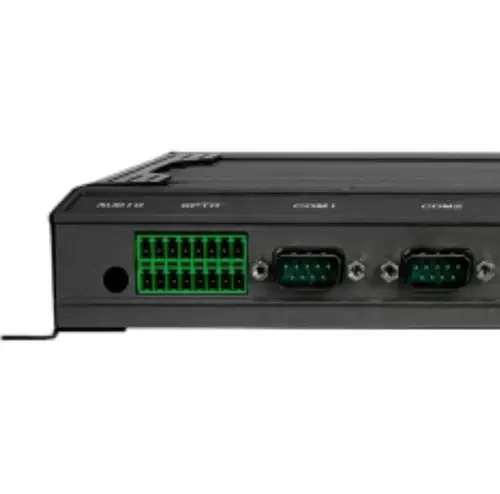

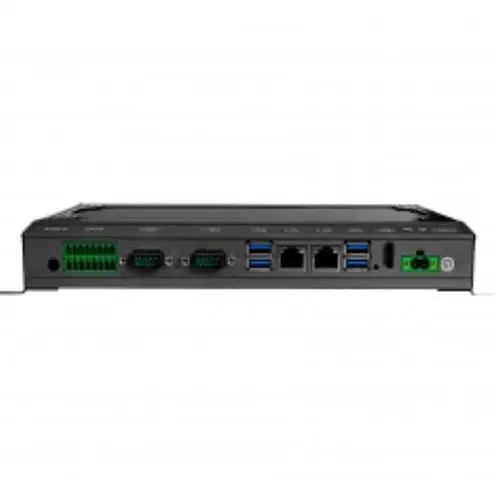

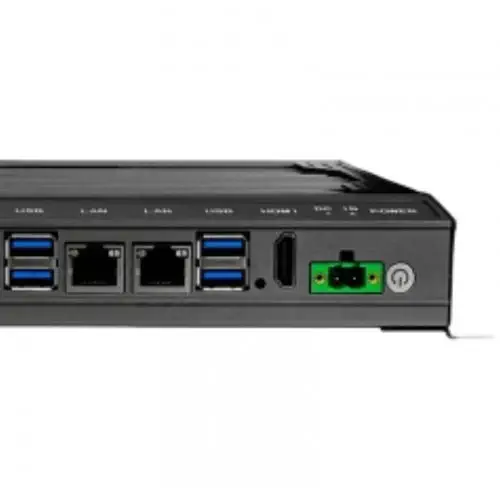

The CK-KE3IN1-KL provides 4x USB ports and 4x COM ports (RS232 configurable to RS485 via jumper settings) for extensive device connectivity. It includes 2x Intel GbE LAN controllers for reliable industrial networking. A Mini PCIe slot with SIM card holder supports 4G/LTE modules for wireless connectivity. Additional interfaces include CAN, GPIO, and audio.

Storage and Expansion

Storage is handled by an M.2 slot supporting SSDs up to 1TB. The system also includes an HDMI port for dual graphics output. For customization, Clickin Industrial offers optional interfaces and configurations based on specific application requirements.

Power and Environmental Specifications

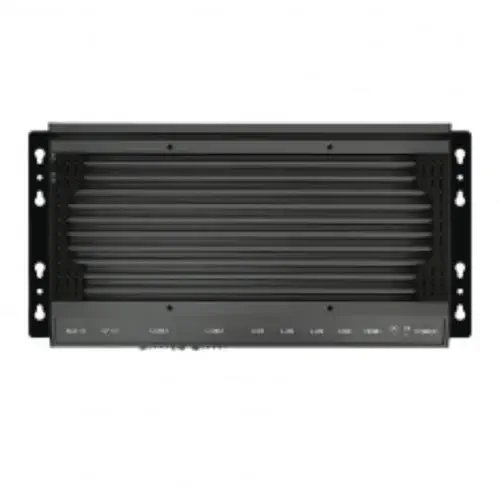

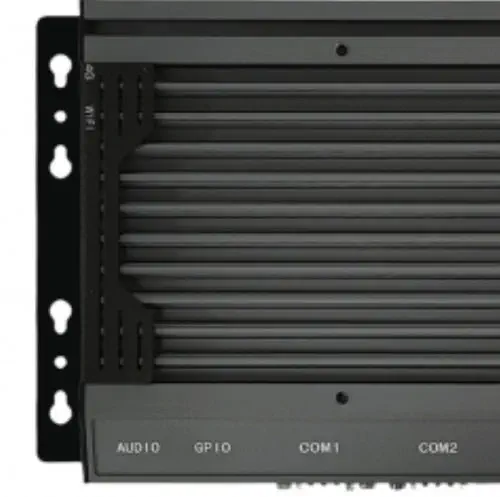

The CK-KE3IN1-KL accepts a wide DC 9-36V input, suitable for mobile and industrial power systems. It operates reliably from -20°C to 60°C and can be stored from -20°C to 70°C, with humidity tolerance of 10-90% non-condensing. The system features magnesium-aluminum alloy profiles with SGCC sheet metal structure for durability, and fin aluminum profile heat dissipation for passive cooling. It is resistant to salt mist environments and uses high-quality wide-temperature components.

Installation Options

The CK-KE3IN1-KL supports multiple mounting configurations: desktop placement for standalone operation, wall mounting for space-constrained installations, and panel mounting for integration into control panels and machinery.

Applications

Ideal for industrial automation controllers, IoT gateways, HMI front-ends, machine vision systems, data acquisition, and industrial edge computing in factories, warehouses, and outdoor environments.
