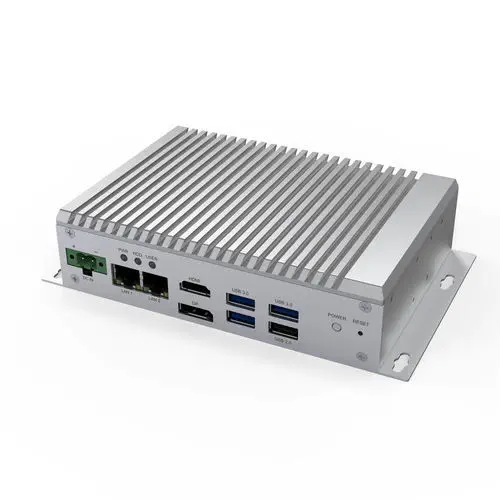

The Estone BPC-7611 is a compact, fanless embedded box PC engineered for mission-critical industrial automation applications. Powered by the Intel Elkhart Lake platform with a quad-core Celeron J6413 processor, it delivers significant performance improvements over previous generations with up to 1.7× single-thread, 1.5× multi-thread, and 2× GPU performance gains, all within an ultra-low 13-watt thermal design power envelope.

Flexible I/O and Expansion

The BPC-7611 provides comprehensive I/O connectivity for demanding industrial environments:

• Display Outputs: 1 x HDMI 1.4b (4K@30Hz) and 1 x DisplayPort 1.2 (4K@60Hz) for dual independent 4K displays.
• USB Ports: 3 x USB 3.2 Gen1 (5Gbps) and 1 x USB 2.0 (480Mbps).
• Serial Ports: 4 x COM ports (RS232/RS422/RS485) configurable via BIOS, ideal for multi-protocol PLC communication, HMI visualization, and sensor network integration.
• Networking: 2 x 2.5 Gigabit RJ45 Ethernet ports for high-speed data transfer and network redundancy.
• Wireless Expansion: 1 x M.2 3042/3052 slot supporting 4G/5G cellular modules, and 1 x M.2 M Key 2242/2280 slot for SATA SSD storage, plus 1 x SATA3.0 connector for additional drive expansion.

Rugged and Reliable Design

The BPC-7611 is built for harsh industrial environments with:

• Fanless, Silent Operation: No moving parts ensures reliability and quiet operation in noise-sensitive environments.
• Wide Operating Temperature: 0°C to 50°C, suitable for control cabinets and factory floors.
• Vibration and Shock Resistance: Tested according to IEC 60068-2-64 (random vibration) and IEC 60068-2-27 (mechanical impact).
• Certifications: CE and FCC Class A certified for electromagnetic compatibility and safety.

Flexible Mounting Options

The compact dimensions (150.0 × 110.0 × 39.0 mm) and versatile mounting options make the BPC-7611 easy to deploy in space-constrained environments:

• DIN rail mounting for control cabinet installation
• VESA mounting for wall or monitor integration
• Desktop placement for standalone operation

Applications

The BPC-7611 is ideal for industrial automation, machine control, edge computing, IIoT gateways, data acquisition systems, HMI front-ends, and robotic control in smart manufacturing environments.
