The Nextech NTWB512 V100 is a rugged industrial box PC designed for demanding compute and I/O applications. Supporting Intel Core i3, i5, i7, or 12th Generation Intel Core processors, it delivers high-performance computing for industrial automation, digital signage, and edge computing deployments.

Processor and Graphics

The system supports a range of Intel Core processors, from i3 to i7, including 12th Generation options. Integrated Intel Iris Xe Graphics drives dual HDMI 2.0 ports supporting resolutions up to 4096x2160 @60Hz, making the NTWB512 V100 suitable for high-resolution visual applications and multi-display setups.

Rich I/O and Connectivity

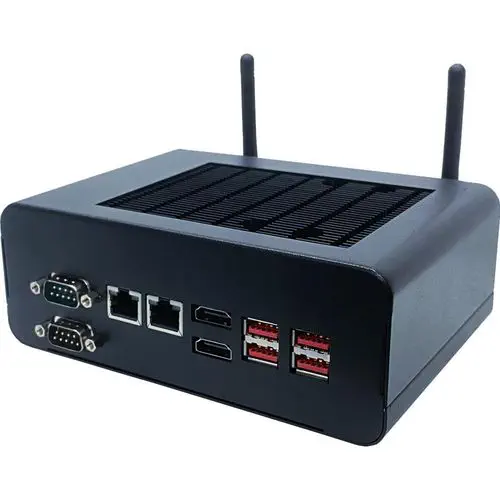

The NTWB512 V100 provides extensive I/O for industrial integration: 2x GbE LAN ports (Intel i226V), 4x USB 3.2 ports, 2x RS232 serial ports, and 2x HDMI 2.0 outputs. Rear I/O also includes audio jacks via the integrated Realtek Audio CODEC. The metal cabinet construction ensures durability in industrial environments.

Storage and Expansion

The system includes one SATA 6Gb/s port, one M.2 M-key (SATA 6Gb/s) slot for SSD storage, and one Full-size Mini PCIe slot for expansion modules. These options provide flexibility for storage configurations and add-on cards.

Power and Environmental Specifications

The NTWB512 V100 accepts a wide 9-36 VDC input, suitable for mobile and industrial power systems. It operates reliably from 0°C to 60°C and can be stored from -40°C to 85°C, with humidity tolerance of 0-90% operating and 0-95% non-condensing. Made in Taiwan with a 3-year warranty.

Applications

Ideal for industrial automation controllers, digital signage players, machine vision systems, edge AI gateways, and data acquisition systems requiring high-performance computing and dual 4K display outputs.
