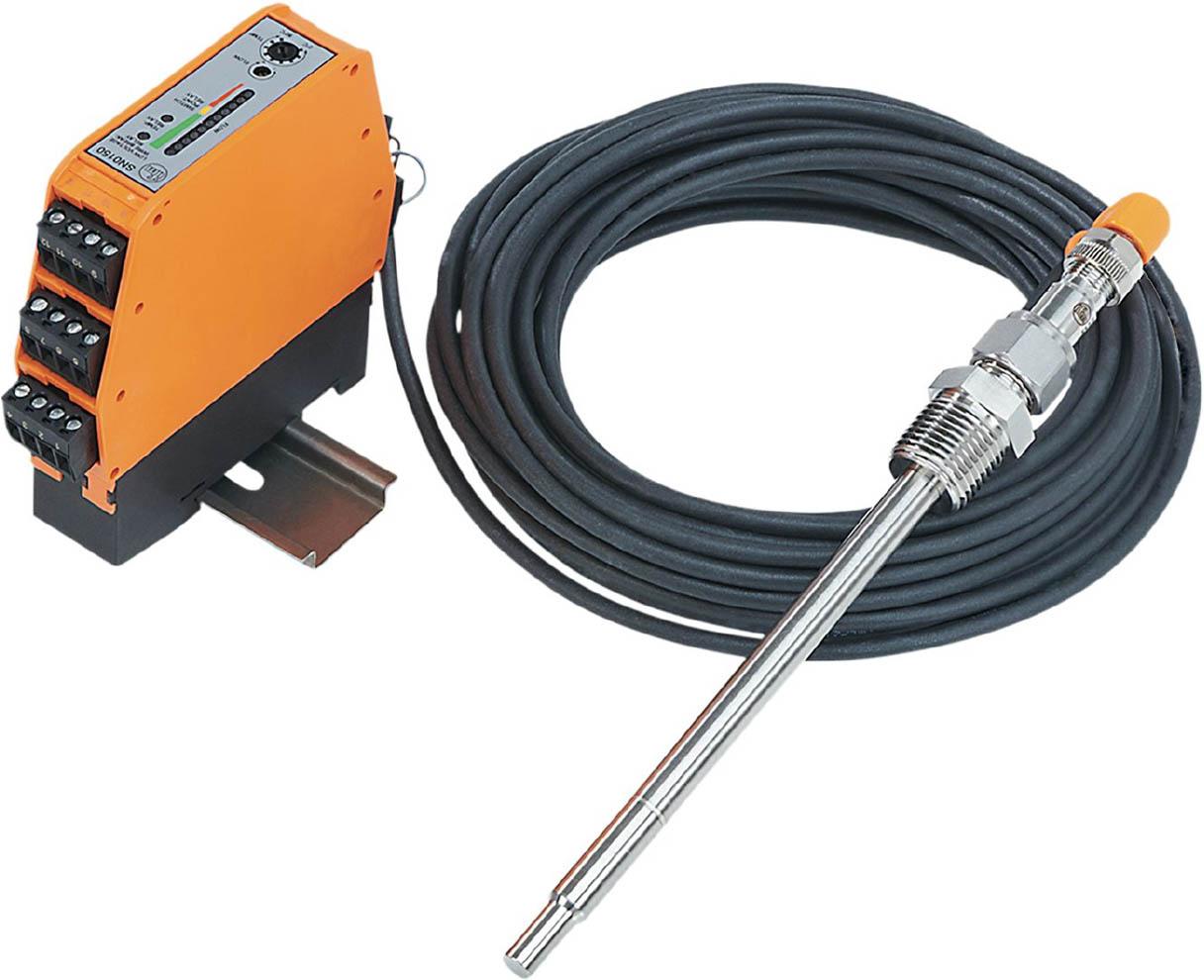

The ifm efector U4 Series Flow sensor with Evaluation Unit offers reliable monitoring of liquids and gases in pipes. This set includes a SF6200 flow sensor, SN0150 control monitor, clamp adapter, M12 cordset, and DIN rail. The SN0150 features adjustable switching outputs for monitoring flow and temperature, potential-free relay contacts, and a multi-color LED bargraph display. The SF6200 flow sensor connects to the control monitor via an M12 connector and features 15 to 156mm probe length with adjustable immersion depth.

The SF6200 has a process connection of Ø10mm clamp fitting, compatible with liquid and gas media. Temperature range -13 to 176°F, pressure rating 30BAR. Setting ranges: liquids 3-300cm/s, gases 200-3000cm/s. Probe length adjustable from 15 to 156mm, IP67 protection rating.

The SN0150 control monitor has operating voltage 90-240VAC, temperature range 32-176°F, power consumption 4VA. It monitors flow, temperature, and wire break. Relay energizes when temperature is exceeded. Power-on delay adjustable 10-80s.
