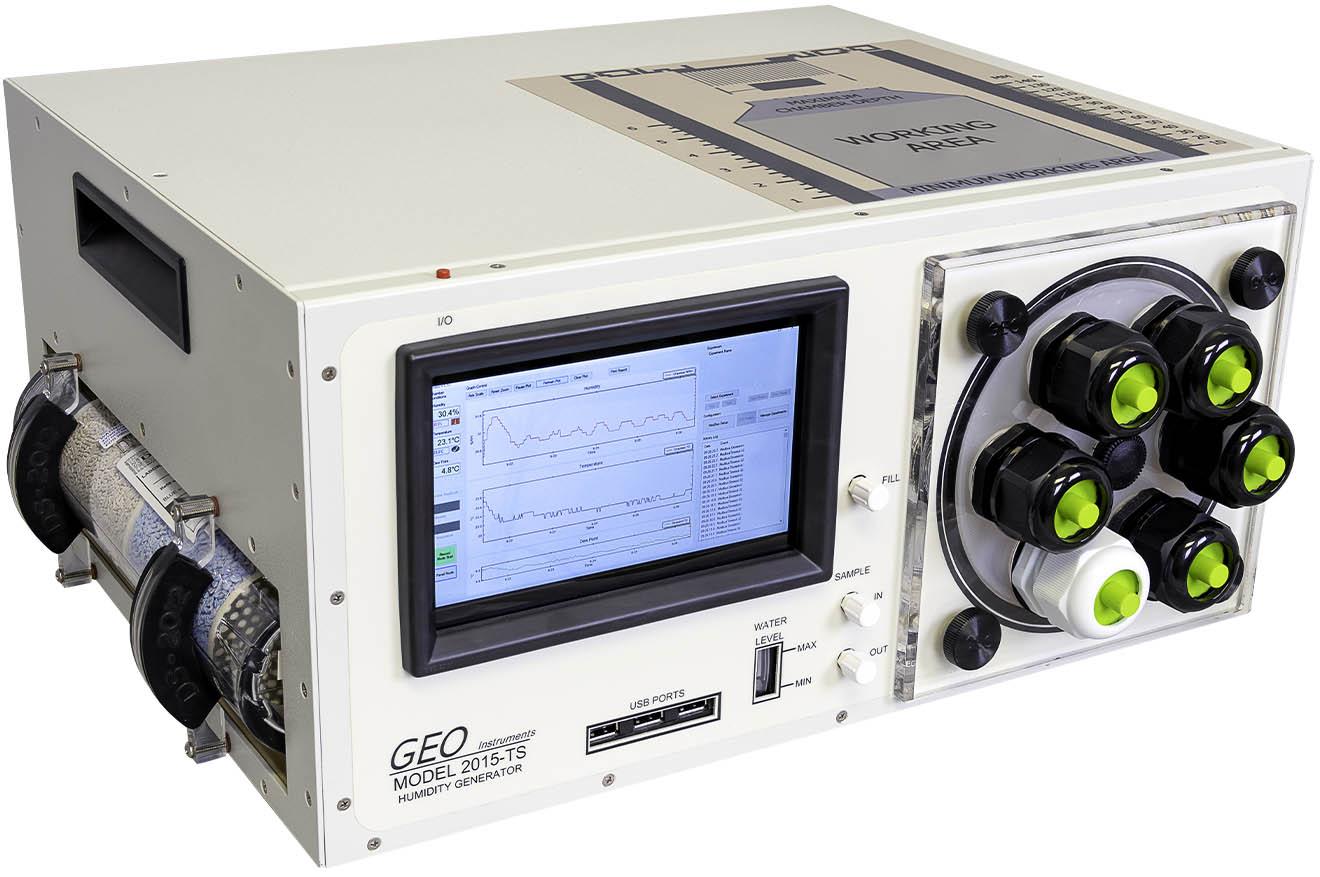

The GEO Calibration 2015 TS humidity generator and calibrator features a large, user-friendly touch screen interface combined with advanced electronics and connectivity. This lightweight, highly accurate portable unit generates and maintains controlled humidity and temperature environments for testing or calibrating humidity and temperature sensors (hygrometers).

Control System

The Model 2015 TS functions through a dual PID controller that takes humidity and temperature values from an internal capacitance probe. The controller performs calculations used to generate user-entered humidity and temperature set points, ensuring precise regulation of chamber conditions. This architecture delivers responsive control with minimal overshoot and stable operation across the full operating range.

Performance Specifications

Temperature range spans 5 to 55°C with ±0.1°C accuracy, temperature uniformity of 0.10°C, and temperature stability of 0.05°C. Humidity range extends from 5 to 95% RH with ±1.0% accuracy, uniformity of 0.30% RH at 18 to 28°C, and stability of 0.15% RH at 18 to 28°C. Ramp and soak rates include temperature high to low at 1.50°C per minute, temperature low to high at 5.00°C per minute, humidity high to low at 5.00% RH per minute, and humidity low to high at 10.00% RH per minute.

Advanced Features

Remote login capabilities enable off-site monitoring and control. Custom doors accommodate dataloggers and chart recorders for specialized calibration configurations. Automatic charting of probe data streamlines documentation and record-keeping. Applications include streamlined probe data charting, probe database management, and probe history reference for maintaining comprehensive calibration records.
