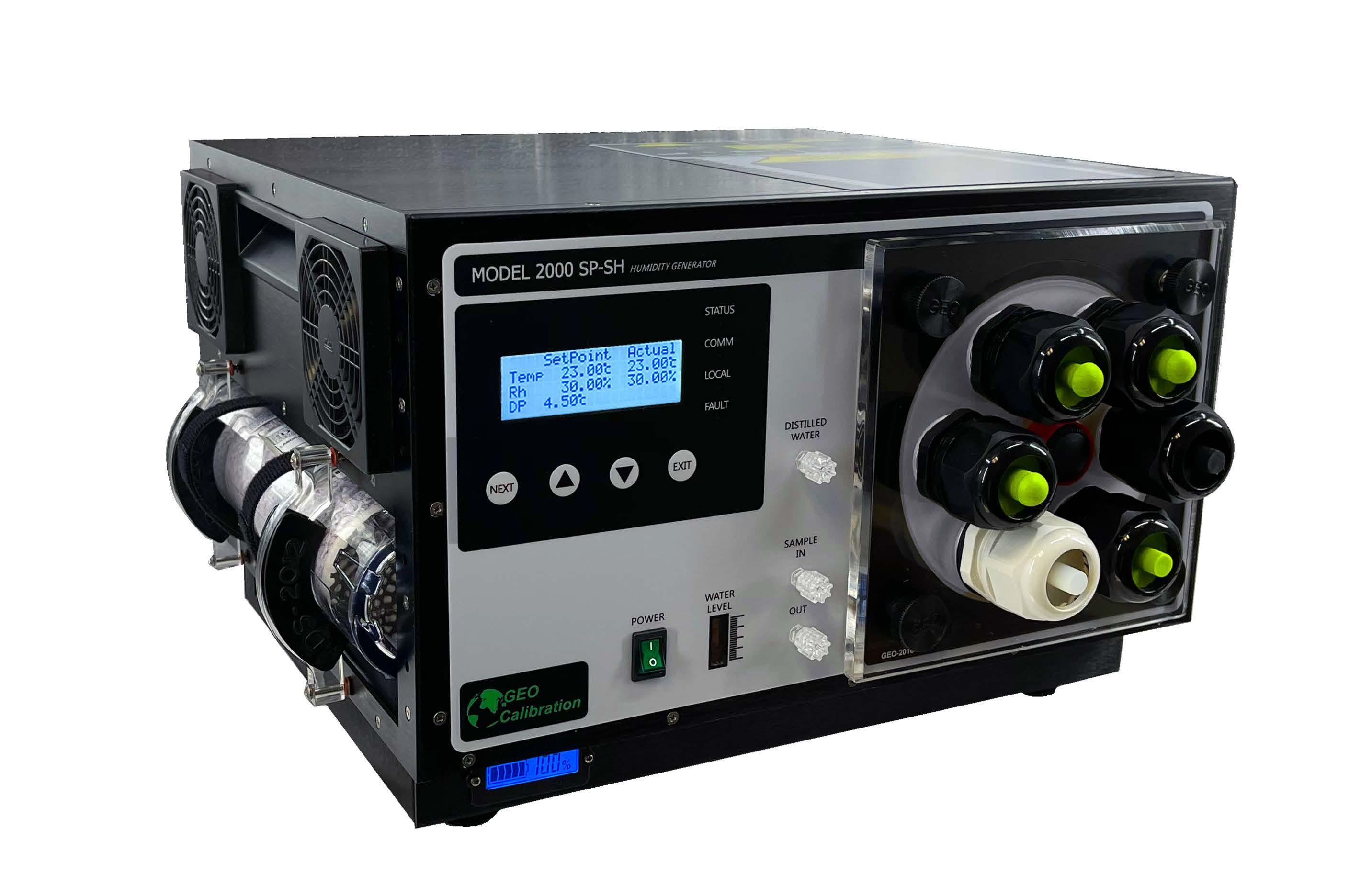

The GEO Calibration 2000 SP-SH battery-powered humidity calibrator delivers lightweight, highly accurate performance for field use without reliance on external AC power. Rack-mountable design enables integration into mobile vehicles and laboratories, with alternate power supply options providing deployment flexibility. This unit combines the proven 2000 series calibration capability with enhanced portability for extended field operations.

Performance Specifications

Temperature range spans 5 to 55°C (41 to 131°F) with ±0.1°C accuracy, temperature uniformity of 0.10°C, and temperature stability of 0.05°C. Humidity range extends from 5 to 95% RH at 23°C with ±1.0% accuracy, uniformity of 0.30% RH, and stability of 0.15% RH at 18 to 28°C. Ramp and soak rates include temperature high to low at 1.50°C per minute, temperature low to high at 5.00°C per minute, humidity high to low at 5.00% RH per minute, and humidity low to high at 10.00% RH per minute.

Field Features

Easy-to-use customer interface with command structure support simplifies operation in field environments. The system enables streamlined charting of probe data, facilitating efficient documentation of calibration results. Probe database management and probe history reference capabilities support comprehensive record-keeping for regulatory compliance and quality management.

Power Flexibility

Battery power enables calibration operations in locations without convenient AC power access. Rack-mountable design with alternate power supply options supports integration into mobile calibration laboratories, field service vehicles, and temporary field stations where power availability may be variable. This flexibility ensures calibration capability can be deployed where needed.
