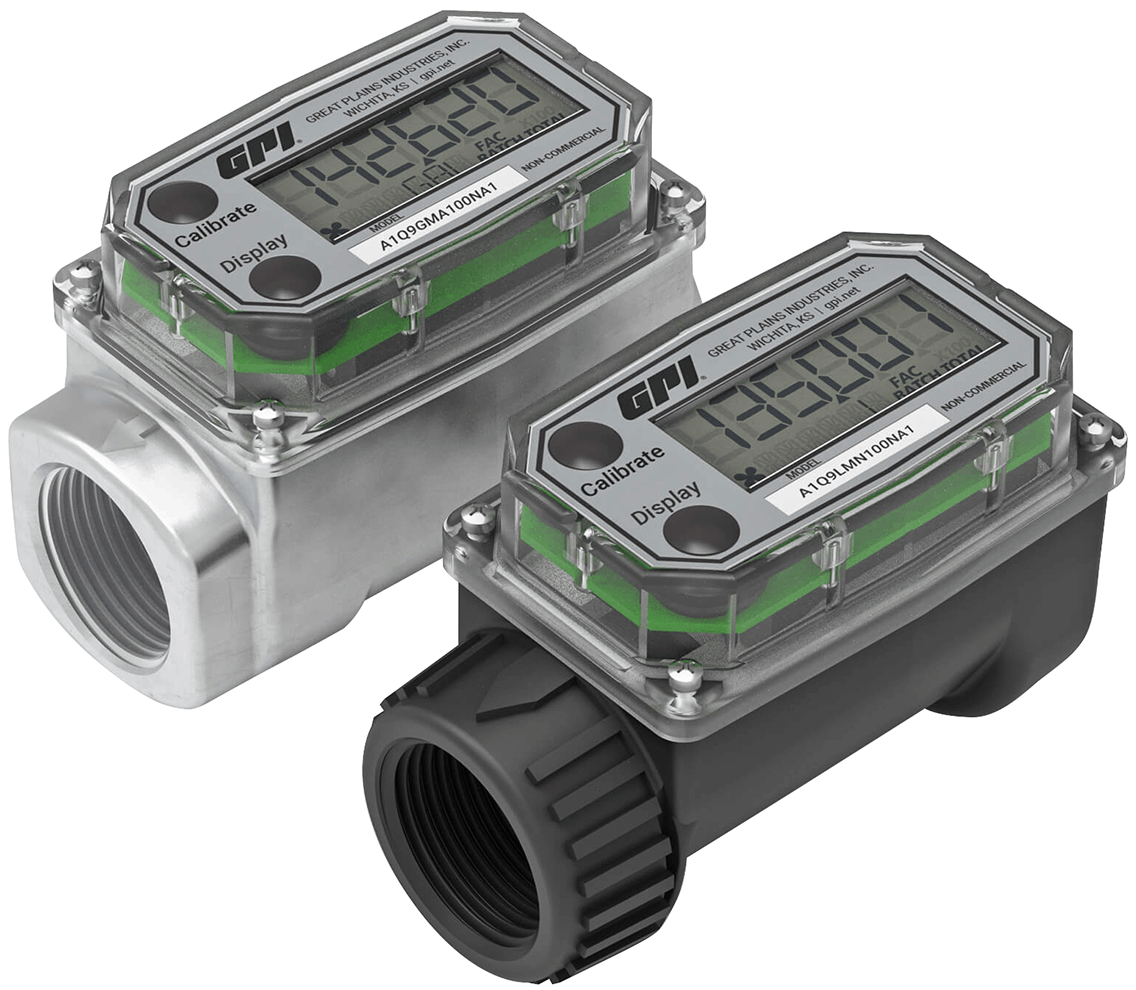

The Flomec GPI A1 turbine flow meter with Q9 display is a commercial grade electronic digital flow meter. The A1 turbine flow meter offers durable, compact, and high precision fluid measurement. This unique package combines the meter and the LCD into a self-contained and compact unit, making it an excellent choice for use even in the most remote locations.

Every GPI A1 turbine flow meter is equipped with a self-contained turbine or paddlewheel flow sensor, precisely matched to an integral battery-powered flow computer. The lightweight and compact design of the flow meter allows for vertical or horizontal installations in areas where other flow meters cannot be used. The GPI A1 turbine flow meter bodies are available in either nylon for water and other non-aggressive liquids or aluminum for fuel and other petroleum products. FM-approved as intrinsically safe, the A1 is perfectly suited for use in hazardous locations.

Flow capacity is up to 300 GPM (1000 LPM) with factory calibration in gallons and liters. The local display features two totals (1 resettable, 1 cumulative), rate of flow, and user configuration. Operating temperature range with integral display is 14 to 140°F, extendable to -40 to 250°F with a remote assembly kit. The 2-year alkaline battery life ensures long-term operation without external power. Applications include fuel transfer, plant process water, batching and blending, fuel products (aluminum model), water and non-aggressive chemicals (nylon model), agricultural chemicals, solvents and glycol, and chemical feed lines.
