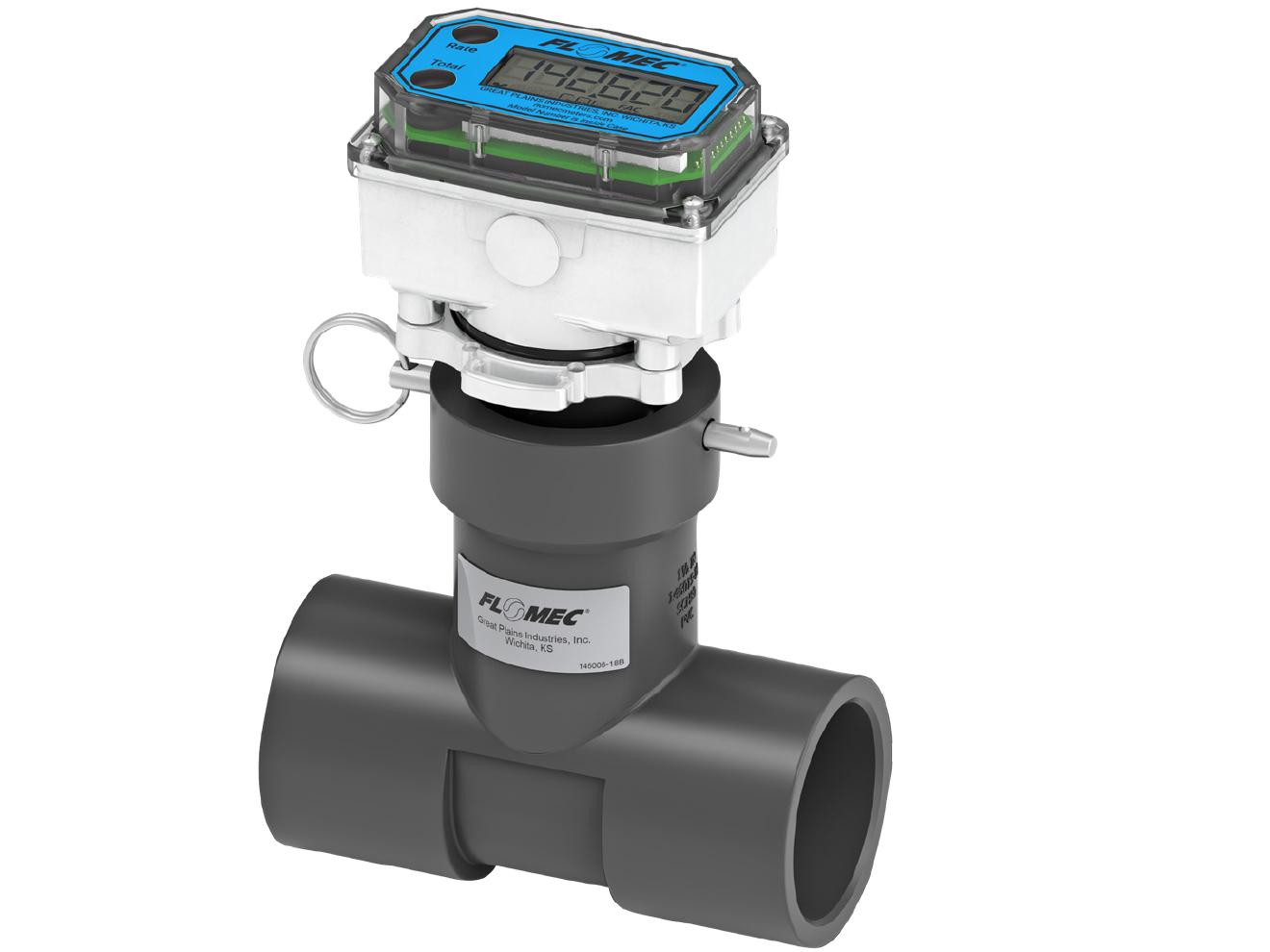

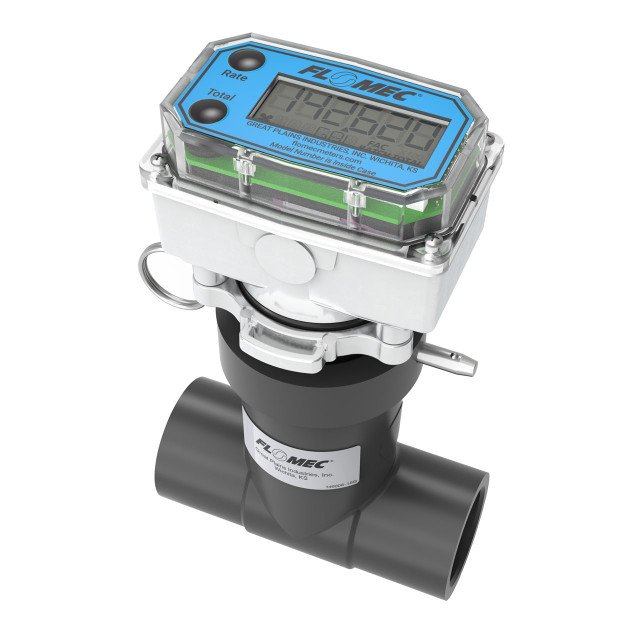

The Flomec AQUAsonic Series Tee Water Meter with Q9 Display deliver accurate, in-line flow measurement utilizing ultrasonic technology with no moving parts, ensuring long-term reliability and minimal maintenance. The units feature digital displays for batch total, cumulative total, and instantaneous flow rate. Designed for easy integration, they offer a range of process connection types to suit various installations. Battery operation eliminates the need for electrical wiring, streamlining the installation process .

The meter is designed for above and below grade applications with IP67 enclosure rating. It operates for water velocities between 0.1 to 15 fps (0.03 to 4.6 m/s). Two totals are provided: Batch Total and Accumulative Total, along with Rate of Flow display. With no moving mechanical parts, maintenance requirements are minimized .

The AQUAsonic is NSF Certified and typically achieves ±2% of reading accuracy. Operating temperature range is 32° to 140°F (0° to 60°C). Socket tee pressure rating is 203 PSI at 73°F (14 bar at 23°C) or 150 psi at 140°F (10 bar at 60°C). Straight run requirements are 10 diameters upstream and 5 diameters downstream for optimal accuracy .

Applications include water monitoring in municipal, commercial, and industrial settings where reliable, maintenance-free flow measurement is required .
