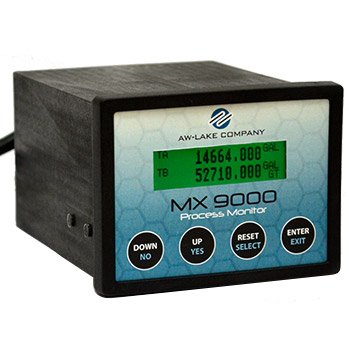

The AW-Lake MX 9000 is a versatile, multi-functional process monitor designed to track flow rate, total, limit, batch, and ratio in a variety of industrial flow measurement applications . The standard unit is a single-channel device, but an optional dual-channel version allows for monitoring two flows simultaneously. These dual flows can be displayed separately, as a sum (e.g., total material use), as a difference (e.g., fuel consumption), or as a ratio of product A to product B .

The MX 9000 features an easy-to-read color backlit LCD display that can change color to indicate warning or alarm conditions. It also includes a powerful batch controller capable of storing up to 20 different batch recipes . The monitor provides two programmable Form C relay outputs and one or two assignable 4-20 mA outputs as options, offering flexible control and retransmission capabilities.

Configuration and communication are handled via a standard USB-B serial port for serial protocol communication . The unit accepts frequency inputs up to 4 kHz and can be ordered with an integrated 30-point linearization table to enhance accuracy over the flow range. Power options include a customer-supplied 14-16 VAC or 18-24 VDC source, or an optional 120/240 VAC power supply .
