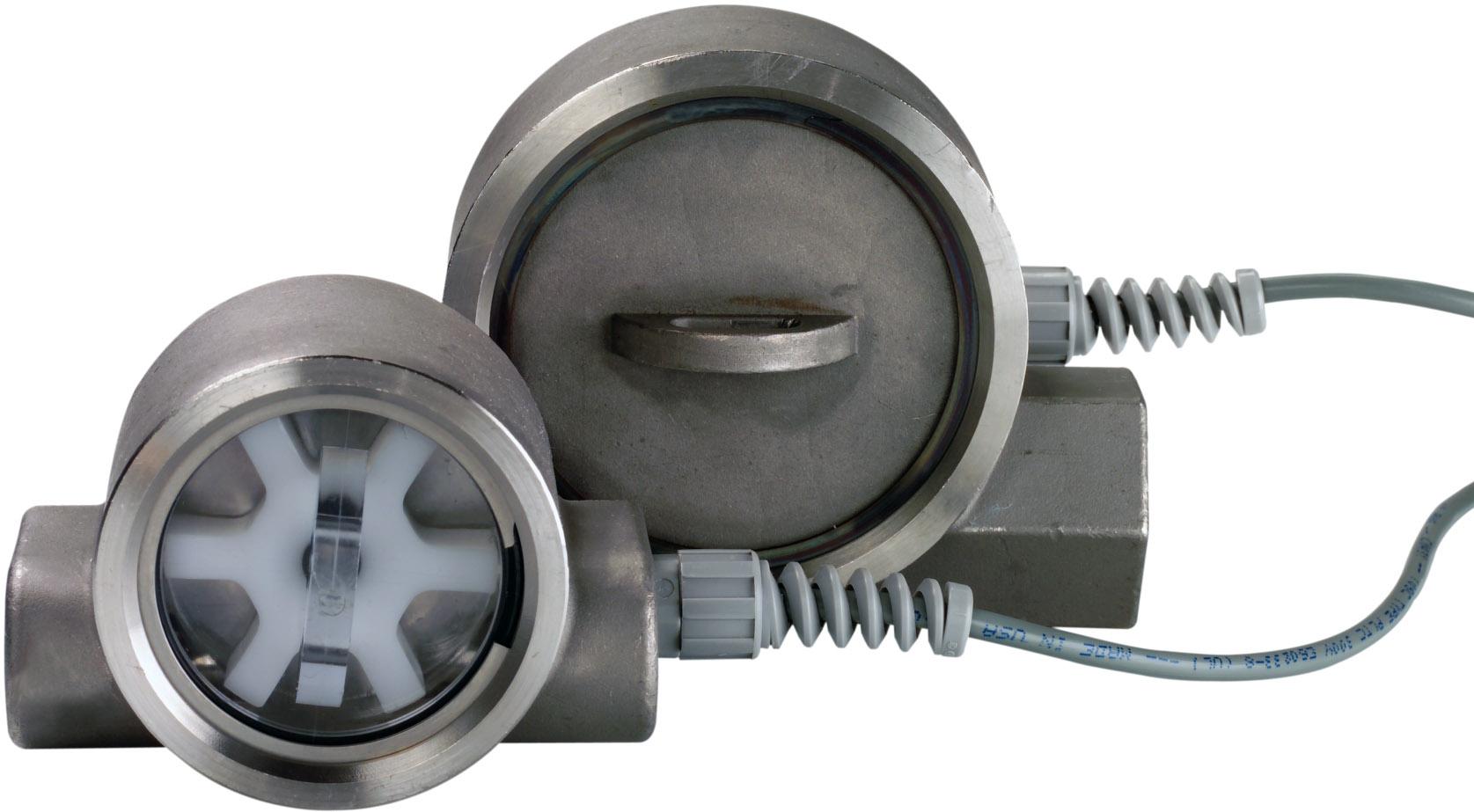

The AW-Lake FlowStat sensors are available with either a stainless steel or polypropylene body, depending on your flow monitoring needs. Both units feature an accuracy of ±2% of full-scale and a repeatability of ±0.5% of full-scale. For additional compatibility, the AW-Lake FlowStat sensors offer 4-20 mA, 0-5 VDC, pulse or relay outputs.

Port sizes vary by model. The 1/2" port size features a 0.5-15 GPM (2-60 LPM) flow measuring range. The 3/4" and 1" port sizes have a 1.5-50 GPM (60-200 LPM) range. Regardless of port size, the stainless steel bodies have a 10:1 turn down ratio and temperature range of 20-225°F (-7 to 107°C). Maximum pressure for SS body is up to 500 PSIG (34 bar), or 200 PSIG with optional clear cover.

The ES version features a durable polypropylene body for cost savings and compatibility with a variety of fluids. It offers flow measuring accuracy of ±2% of full scale, with flow measuring range 0.5-15 GPM (or 0.1-4.0 GPM with optional low-flow adapter). The poly body can handle pressures up to 150 PSIG and temperatures up to 150°F. All versions come with a 10' pigtail, 22 AWG multi-conductor cable standard.
