Product Specifications
Manufacturer : Honeywell
Model Number : Sensepoint XCD RFD Kit
Type : Remote Flammable Gas Detection System
Components : XCD transmitter, 705 sensor, junction box
Temperature Range : Standard: -67 to 176°F; High-temp: up to 302°F
Input Voltage : 16 to 32 VDC (24 VDC nominal)
Display : Tri-color backlit LCD with magnetic switches
Documents: Product Specs
Product Description
The Honeywell Sensepoint XCD RFD kit combines XCD transmitter, 705 combustible sensor, and junction box for remote flammable gas detection applications. The gas range is user-adjustable from 0-100% LEL down to 0-20% LEL, allowing alarm set points as low as 5% LEL with high-temperature sensors.
The XCD transmitter features two programmable alarm/fault relays, industry-standard 4-20mA output, and optional Modbus RTU. Calibration and relay operation adjustable via backlit LCD and non-intrusive magnetic switches. Available in epoxy-painted aluminum alloy or 316 stainless steel with pole or wall mounting options. High-temperature version operates up to 302°F.
Related Products
- Honeywell Sensepoint XCD RFD — Class I Div 1, remote sensor
- Honeywell Sensepoint XCD — Tri-color status, plug-in sensors, MODBUS
Resources & Documentation

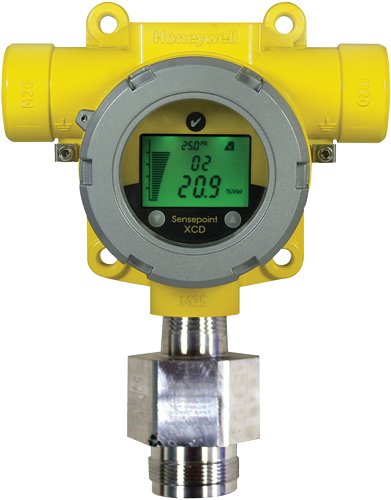

Remote Flammable Gas Kit | Honeywell Sensepoint XCD RFD
