Product Specifications
Manufacturer : RKI Instruments
Model Number : AirLink VOC Pro
Type : Wireless PID Gas Detector
Sensor Options : PID with 10.0 eV, 10.6 eV (low/high PPM), or 11.7 eV lamp
Outputs : 4-20mA (3-wire), RS-485 Modbus, 900 MHz or 2.4 GHz radio
Enclosure : Explosion-proof, Class I Division 1 Groups B,C,D
Calibration : Non-intrusive magnetic switches
Documents: Product Manual, Product Specs
Product Description
The RKI AirLink VOC Pro is a wireless PID gas detector with explosion-proof housing for continuous VOC monitoring. Powered by 12 to 35 VDC with wireless communication to RKI controllers. Standard 4-20 mA analog and RS-485 Modbus outputs. Magnetic switches allow non-intrusive calibration and full system settings in the field.
PID lamp options: 10.0 eV, 10.6 eV Low PPM, 10.6 eV High PPM, and 11.7 eV. Graphical LCD with LED backlight, 3 push-button interface, two individually configurable alarms with front panel LED indicators. Operating temperature -40° to 129°F. Hazardous location approvals: Class I, Division 1&2, Groups B, C&D. Applications include petrochemical plants, refineries, water/wastewater treatment, and chemical plants.

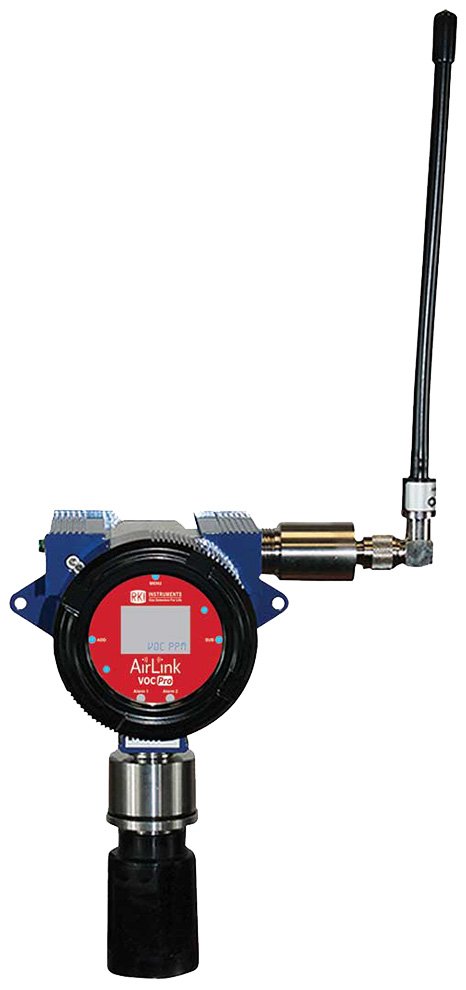

Wireless PID Gas Detector | RKI AirLink VOC Pro
