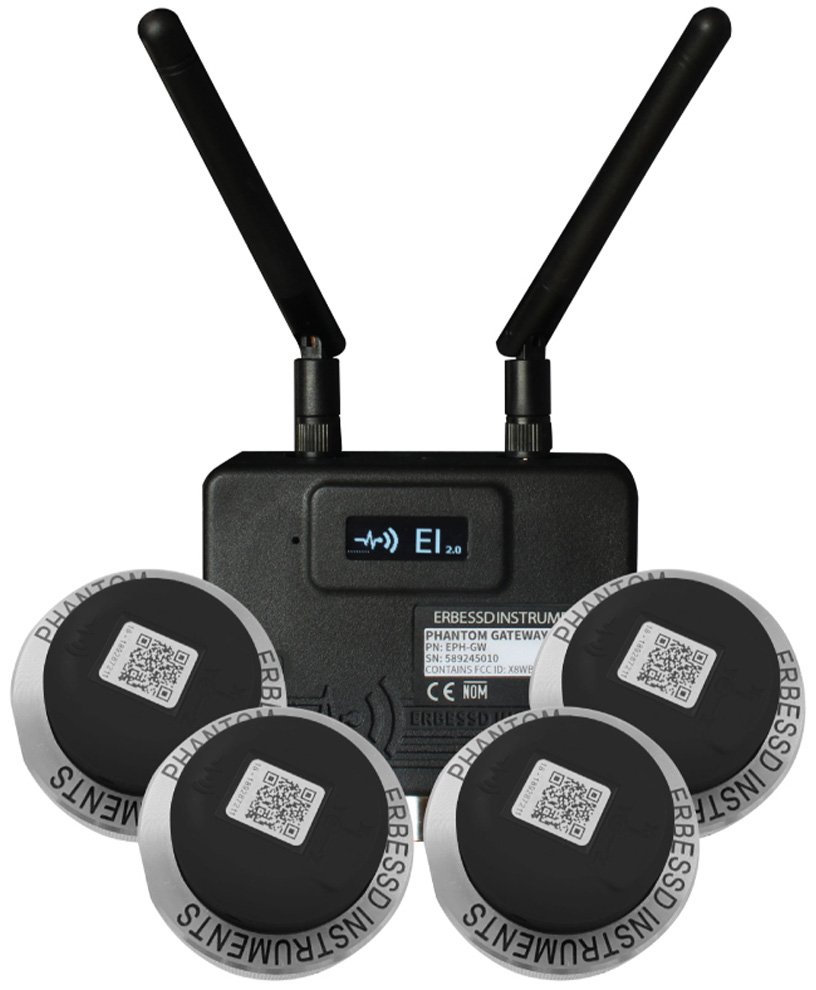

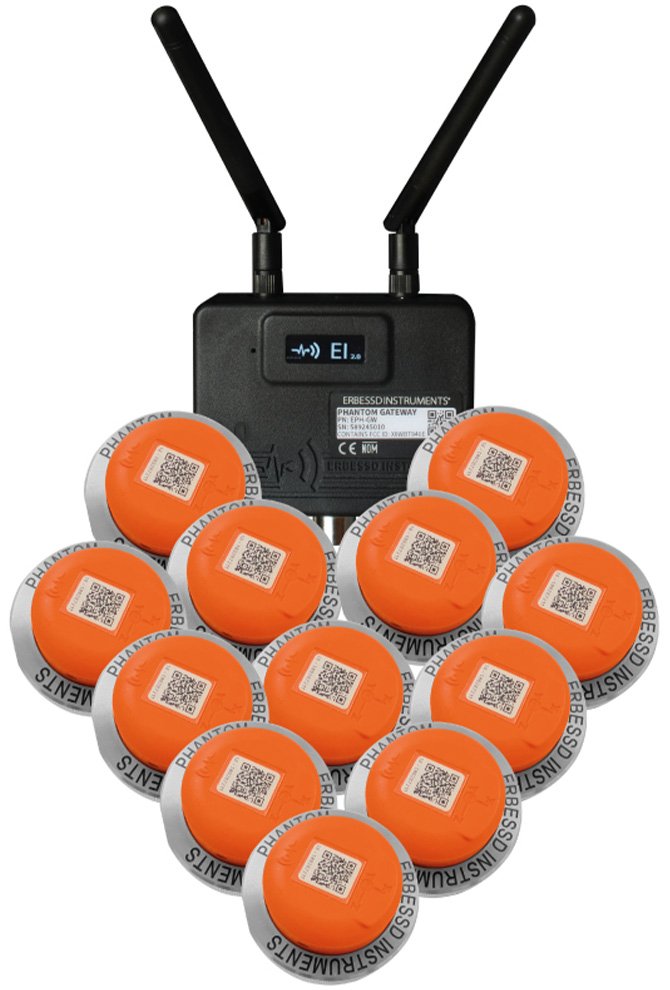

The Erbessd Instruments Phantom is a comprehensive, wireless remote monitoring system designed to predict machine failures and prevent unplanned downtime . It integrates multiple parameter measurements into a single diagnostic platform, including vibration, temperature, current, and RPM . Data can be sent to a local database or to the cloud-based EIAnalytic system, allowing users to monitor machinery health from any smartphone, computer, or tablet .

The system utilizes wireless accelerometers that are easy to install and feature a long battery life capable of up to 100,000 measurements. The sensors are triaxial and include a temperature sensor, with a maximum frequency (FMax) of 10 kHz and up to 6400 lines of resolution. They provide full waveform and spectrum data and have a programmable internal RMS trigger. For comprehensive analysis, the Phantom system can also integrate amperage monitoring on all three phases (5 to 1000A range) and monitor RPM up to 200,000 RPM . The sensors are rated IP67 for dust and water resistance .

The Phantom system is capable of identifying a wide range of common machine faults, including bearing failure stages I-IV, imbalance, misalignment, mechanical looseness, shaft and bearing wear, electrical noise, and resonance . By providing early warning of these conditions, the Phantom helps maintenance teams save significant costs associated with non-programmed production downtime .
