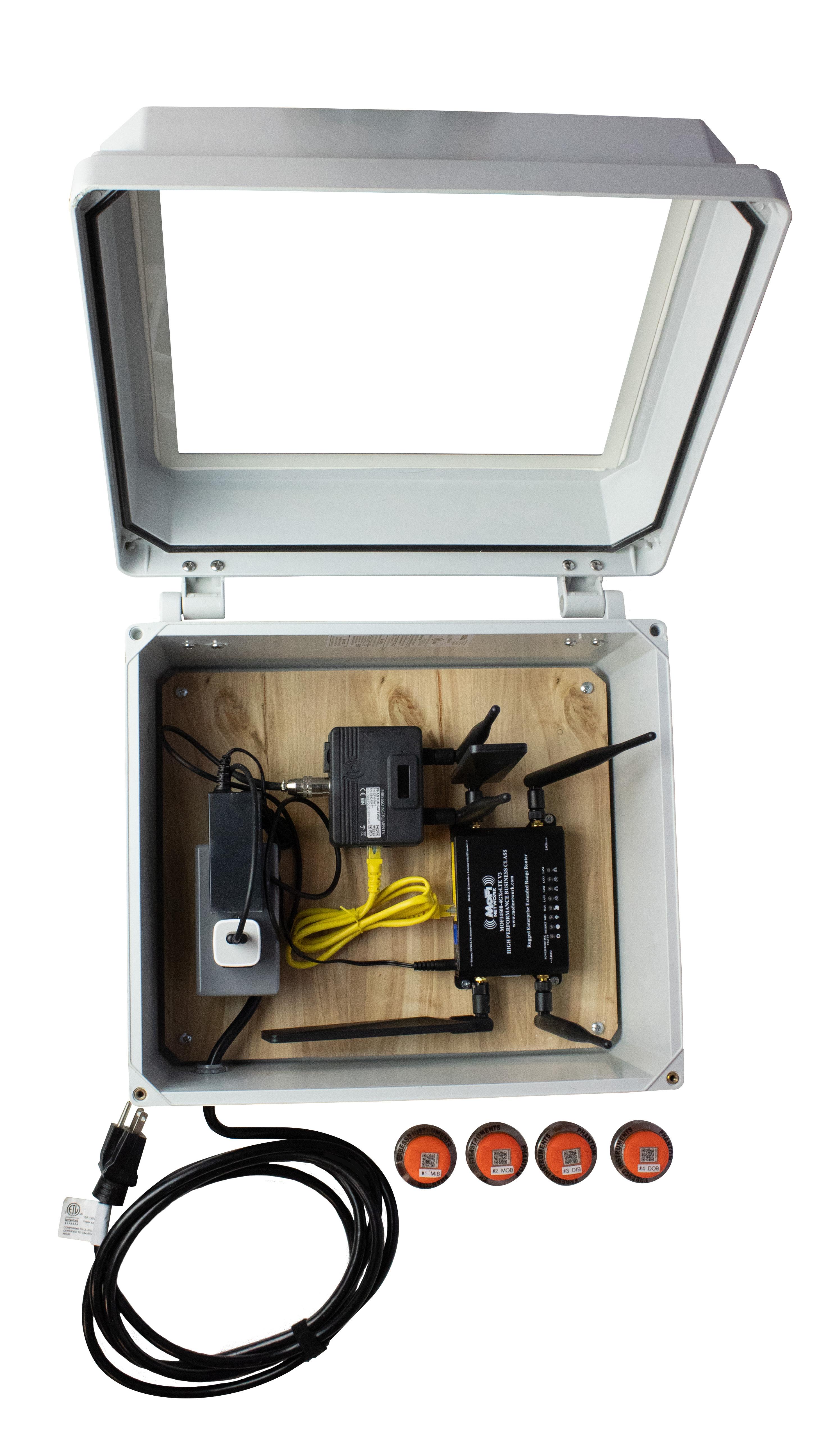

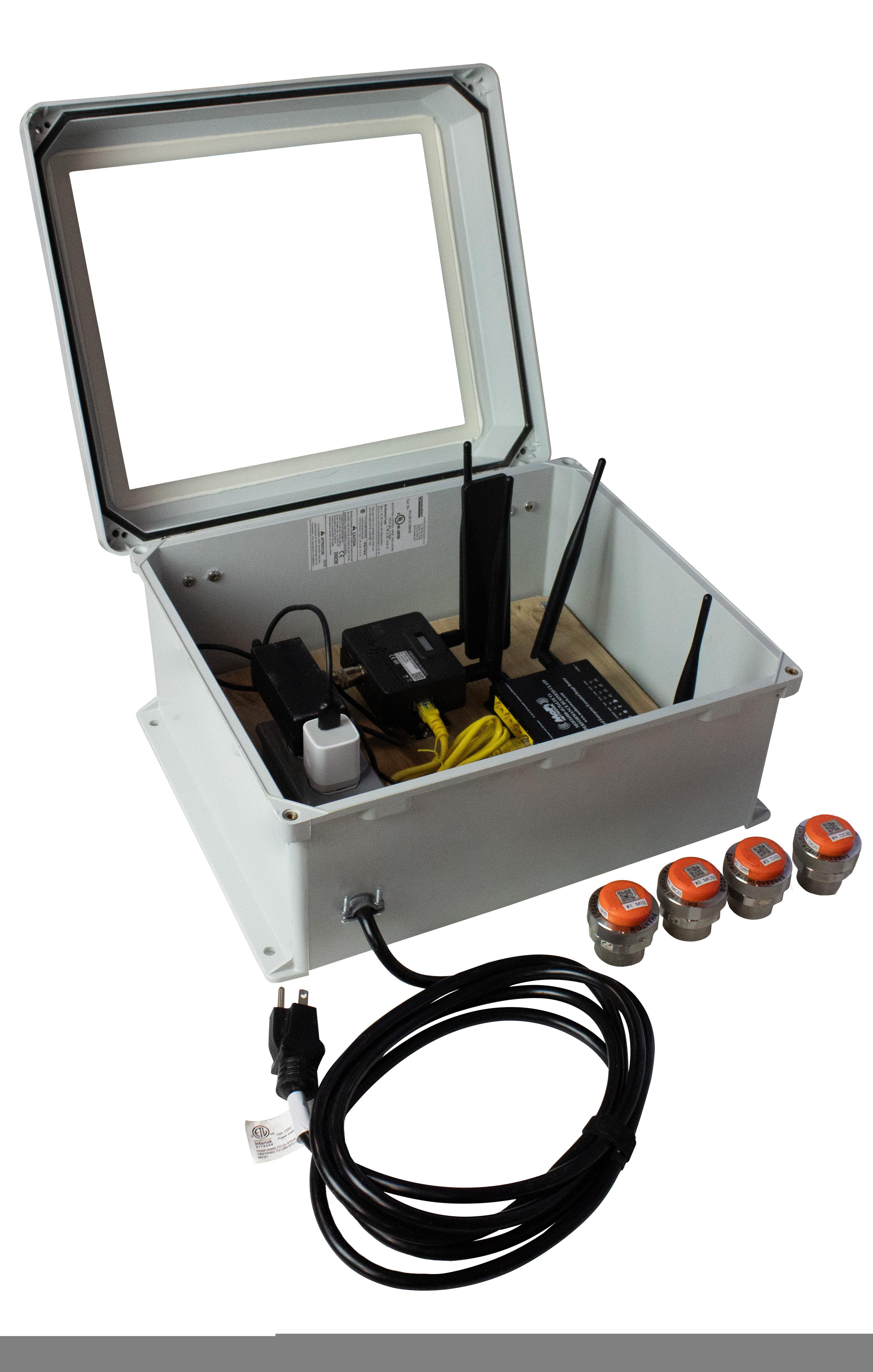

The Erbessd Instruments Phantom Remote Monitoring System integrates other parameters such as temperature, current, RPM and speed into a single diagnosis system. The sensors have a battery life that lasts enough to take up to 100,000 measurements and they are very easy to install. Equally important, the Phantom can send data to a local database or to the cloud-based system, EIAnalytic. At any moment, you can keep track of your machinery using any device such as a smartphone, computer or tablet .

The Phantom Vibration Monitoring System will help you to predict machine failures and save huge amount of costs due to non-programmed down times in production. For example, the following list are the most common failures that can be identified by our condition monitoring system: Bearing Failure Stage I, II, III, and IV; Imbalance; Shaft and Bearing Wear; Mechanical Looseness; Misalignment; Electrical noise; Resonance; Among others .

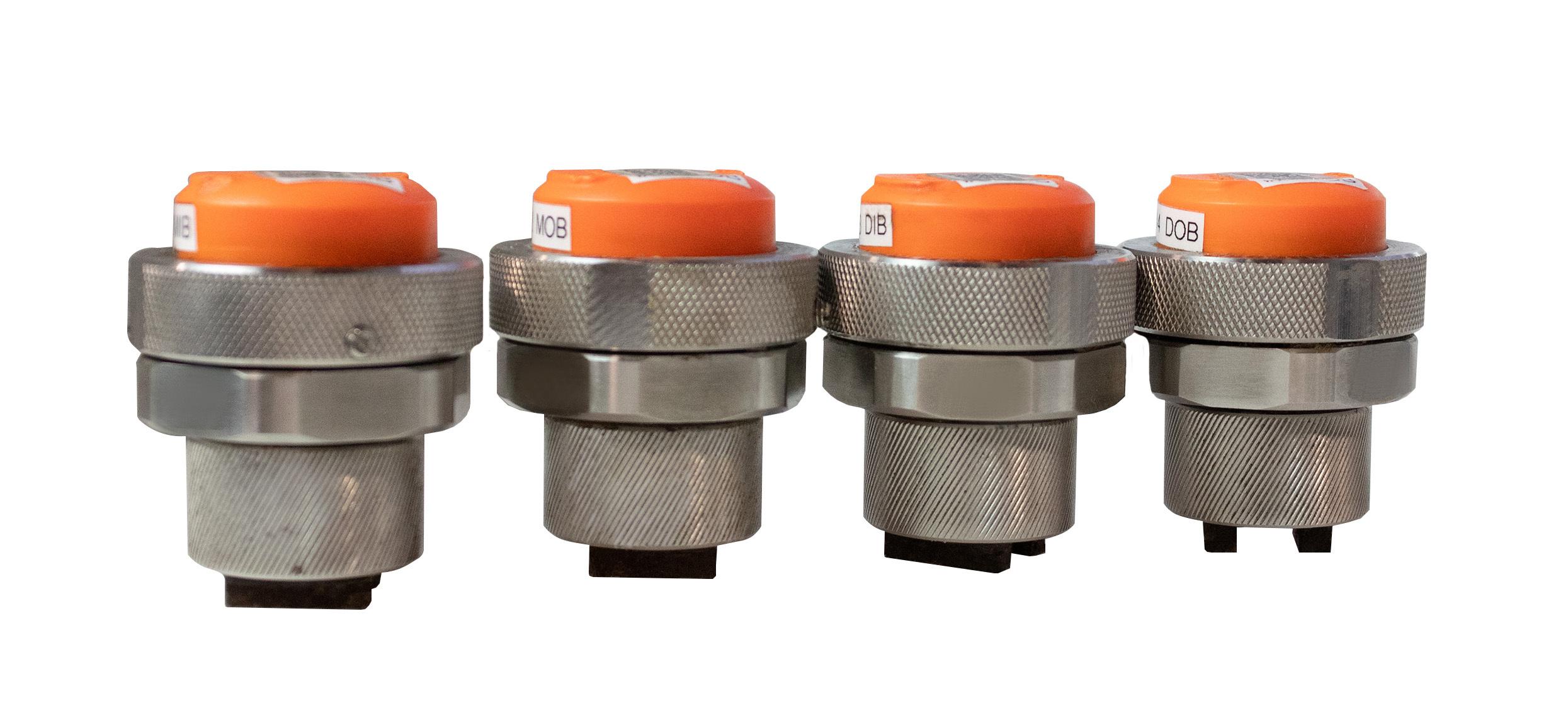

The system features triaxial accelerometers with temperature sensing, capable of 10 kHz Fmax, full waveform and spectrum data capture, programmable internal RMS trigger, and up to 6400 lines of resolution. It also includes 3-phase amperage monitoring from 5 to 1000A, speed monitoring up to 200,000 RPM, and both thermocouple and infrared non-contact temperature sensing. The sensors are IP67 rated for dust and water resistance.
