The Erbessd Instruments DigivibeMX Series is a comprehensive and productive system for vibration analysis and dynamic balancing, designed to meet the needs of both novice and expert users . The series includes the M10, M20, and M30 models, each offering a progressively advanced feature set for diagnosing complex machinery problems in both on-route and off-route modes .

At the core of the DigivibeMX series is a powerful FFT spectral analysis engine, capable of measuring frequencies from as low as 0.4 Hz up to 30 kHz with a resolution of up to 2 million lines. The M20 and M30 models feature dual-channel functionality for faster data collection and include an expandable database with fault frequencies for more than 23,000 bearings. These higher-tier models also offer ODS (Operating Deflection Shape) and 3D cascade analysis, and include functions for gearbox frequency calculation and analysis .

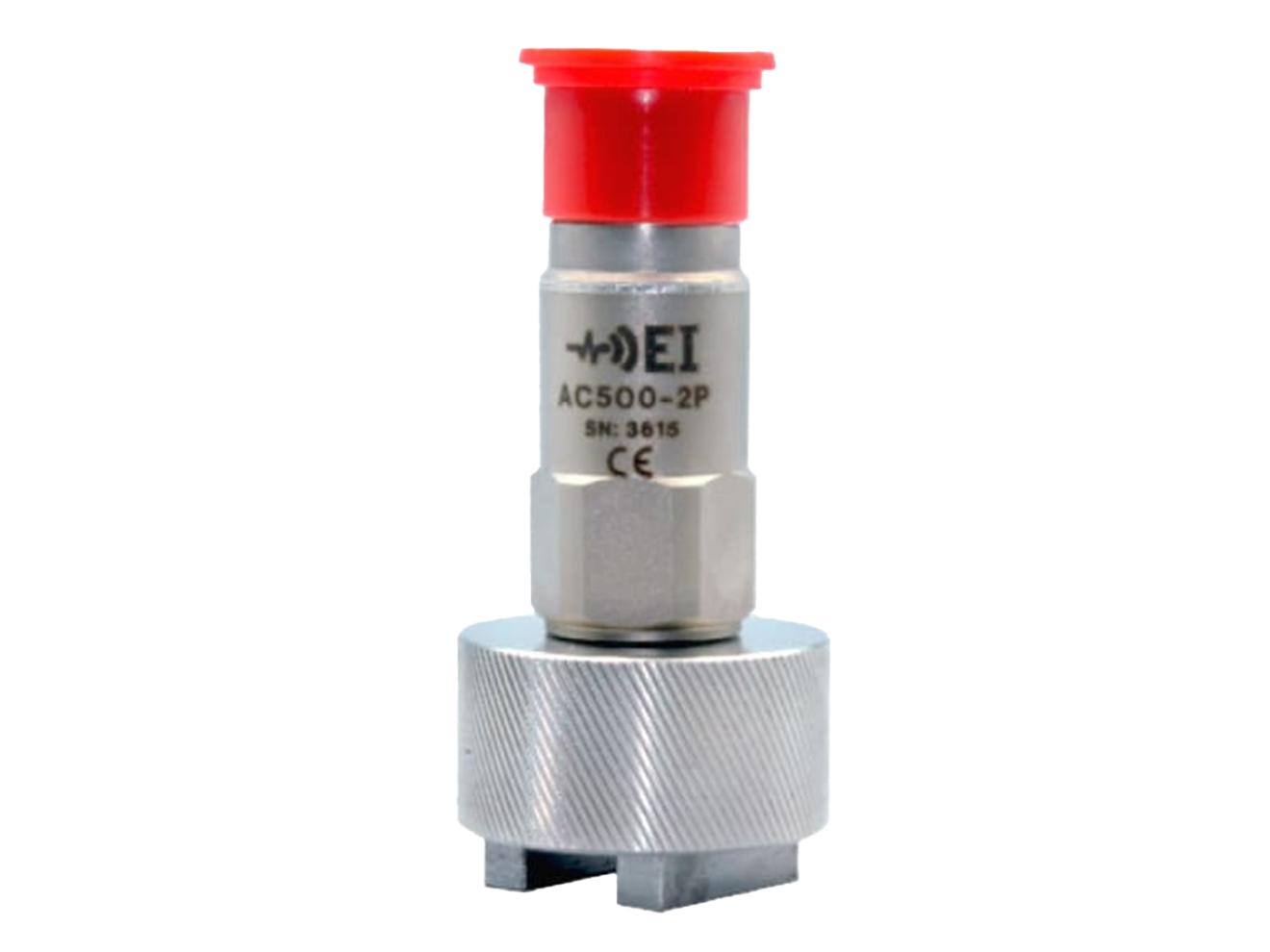

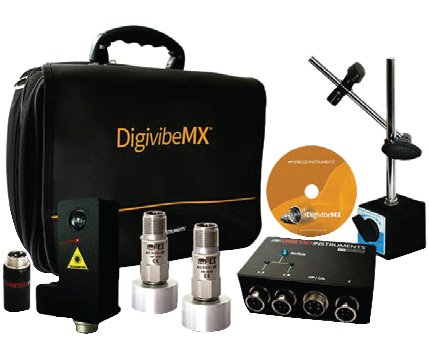

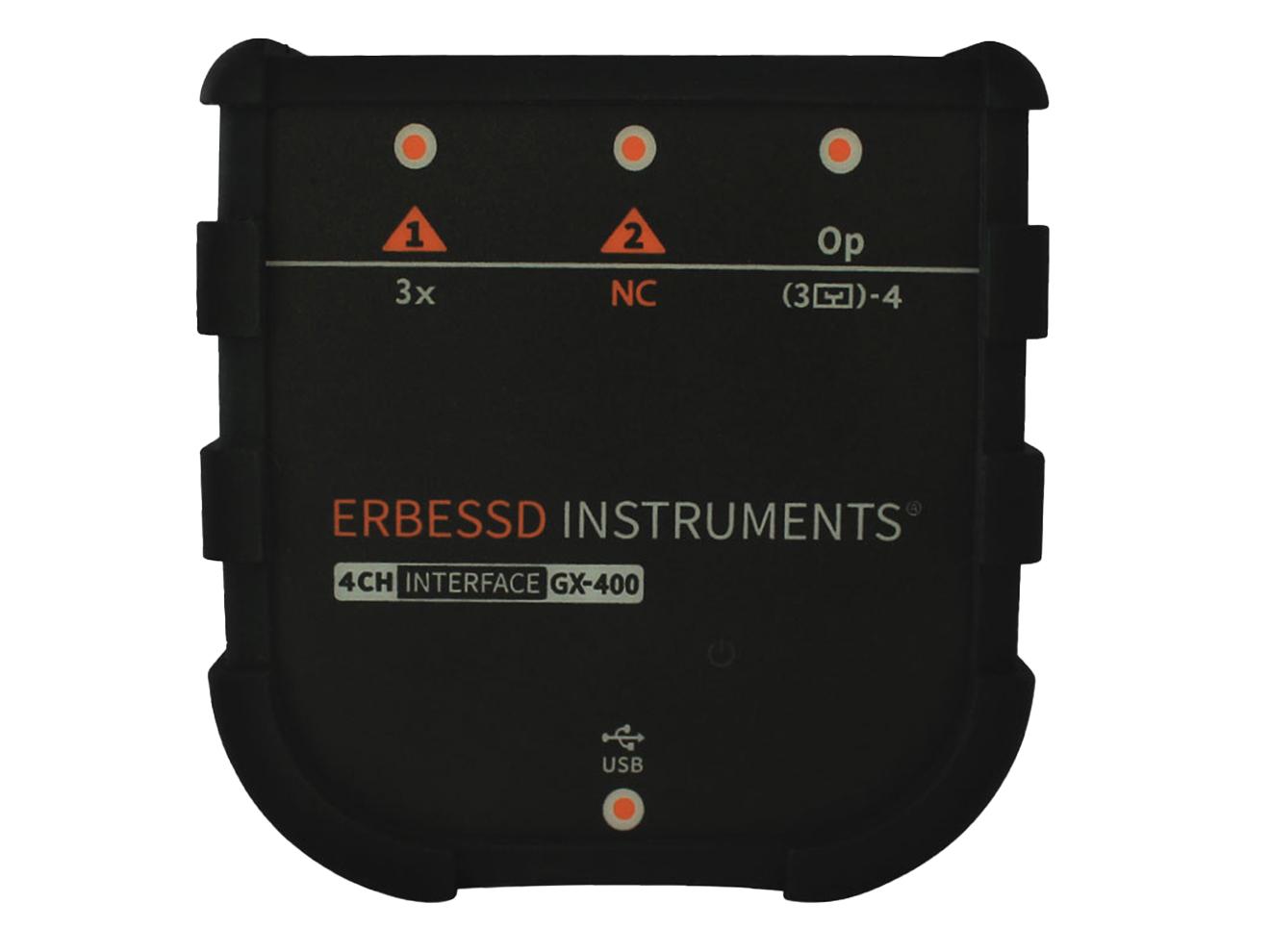

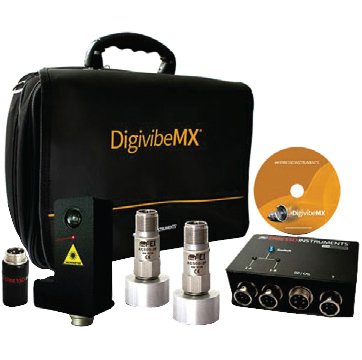

Dynamic balancing in one and two planes is a key feature of the M10 and M30 models, suitable for both in-situ balancing and use on balancing machines. The M30 model offers an optional Master Analyst (MA) upgrade. A typical M30 kit includes a 4-channel GX400 interface, multiple accelerometers (including triaxial), wireless triaxial WiSER 3X sensors, laser tachometers, and a Surface Pro tablet, all housed in a rugged hard case. The intuitive interface and advanced tools help avoid high costs associated with downtime, collateral damage, and unplanned repairs .
