Product Specifications

Product Description

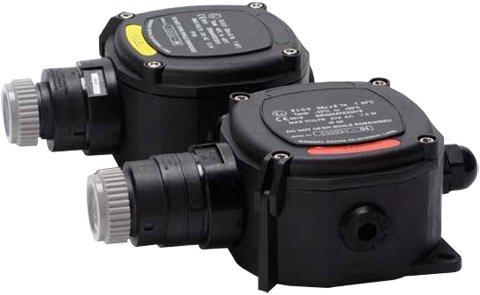

The Honeywell Sensepoint range offers cost-effective fixed gas detectors for flammable, toxic, and oxygen gases, suitable for indoor and outdoor use in potentially explosive atmospheres. The detectors come with a pre-wired junction box, allowing installation with conduit or armored cable. Flammable detectors are available in %LEL or ppm versions with an industry-standard mV bridge output and a typical life expectancy of over 5 years.

Toxic and oxygen detectors are supplied pre-calibrated with a 2-wire 4-20 mA loop output. Their intrinsically safe front end enables easy sensor exchange while powered, eliminates the need for a sinter, and provides fast response to "sticky" gases like chlorine and ammonia. The junction box features a hinged lid for easy access to terminals, an earth continuity plate for RFI protection, and multiple conduit entries. Sensepoint detectors are compatible with Honeywell’s Touchpoint controller range.

Honeywell
Compare

Gas Detector - Flammable/Toxic/O2 | Honeywell Sensepoint

Catalytic/electrochemical, IP65/66
MPN/Series: Sensepoint

Product Specifications

Manufacturer
Honeywell
Model Number
Sensepoint
Type
Gas Detectors
Sensor Technology
Catalytic bead (flammable), electrochemical (toxic, O2)
Flammable Range
0-100% LEL or ppm versions
Toxic Gases
CO, H2S, H2, Cl2, SO2, NO2, NH3 (various ranges)
Output
mV (flammable) or 4-20mA (toxic/O2)
Enclosure Rating
IP65/66
Documents
Product Specs (2 Files)
Gas Detector - Flammable/Toxic/O2 | Honeywell Sensepoint
