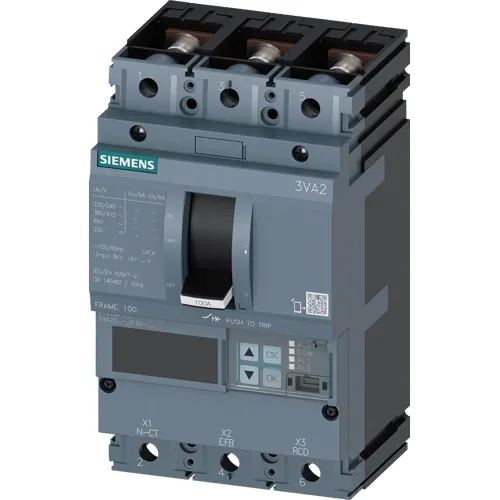

When your panel can see more than 55 kA, the 3VA2063-6JP32-0AA0 delivers. It switches off 85 kA at 415 V – enough for main incomer and bus‑coupler duty. ETU550 LSI protection lets you dial in coordination perfectly, and the screw‑flat connections (nut keeper) guarantee low‑resistance terminations even under heavy vibration.

Protection & control

• L: Ir 25…63 A, I²t, tr 0.5…17 s.
• S: Isd 0.6…10 × In, tsd 0.0001…0.4 s.
• I: Ii 1.5…12 × In.
• Neutral (optional): External CT, up to 160% In.
• Integrated display, measurement and communication (Modbus TCP/RTU, PROFINET, PROFIBUS).

Specifications

• Rated insulation voltage Ui: 800 V AC; Ue: 690 V AC
• Icu/Ics @415 V: 85 kA; Icm: 187 kA
• Mechanical life 20 000 ops; electrical life 14 000 cycles
• Power loss 1.8 W/pole; IP40 front
• Dimensions: 181 × 105 × 86 mm; Weight: 2.282 kg
• Standard: IEC/EN 60947-2; Origin: Czech Republic

Installation & application

• 35 mm DIN rail, nut keeper terminals.
• Ideal for main switchboards, bus‑couplers, large motor control centres – anywhere high fault currents are present and you need remote monitoring.
