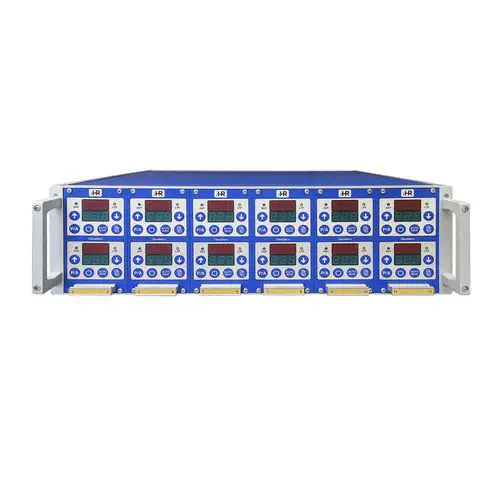

The Plasteel iDouble‑C is a modular multi‑zone temperature controller specifically engineered for hot‑runner injection molds in demanding plastics manufacturing environments. It uses dual 32‑bit microprocessors on each control card—one dedicated entirely to temperature regulation, the other to the display and user interface—ensuring that control performance is never compromised by screen updates or communication tasks. The self‑tuning PID algorithm continuously auto‑corrects control parameters to maintain setpoint temperature within ±0.5 °C, even under the highly dynamic thermal loads of injection molding cycles. The 4.3‑inch color touch screen, with Plasteel's C‑View software, provides an intuitive, full‑graphics interface for setup, monitoring, and diagnostics.

Precise Multi‑Zone Control and Self‑Tuning PID

• Up to 48 independent control zones: The system is built around 6‑zone control cards that can be combined to drive up to 48 zones. Zone expansion is achieved by daisy‑chaining 15‑zone main enclosures with additional 6‑zone blocks, letting a production hall scale from a single 6‑cavity tool to a complex 48‑cavity system without replacing the controller.
• Continuous self‑tuning PID: The temperature controller samples each zone 10 times per second. The dual‑processor architecture calculates the optimal PID constants in real time and writes them to the control processor without interrupting the heater output. This is distinct from a one‑shot auto‑tune that runs only at startup—the iDouble‑C re‑evaluates the thermal response of each zone every scan cycle.
• Phase‑angle power delivery with 24 V DC output: The 24 V DC low‑voltage heating supply eliminates the 230 V AC at the mold connection. Combined with phase‑angle control—firing the output in 1,000 precisely timed steps per half‑cycle—the controller eliminates the thermal ripple typical of mechanical relay or simple SSR switching. The result is accurate, surge‑free heating that protects both the mold and the operators.
• 4 soft‑start modes: Normal, Progressive, Standby, and Preheat modes let process engineers tailor the thermal ramp to different mold geometries, preventing thermal shock during startup and reducing scrap during shift changes.

Advanced Mold Protection and Proactive Maintenance

• Ground‑leakage detection: The controller continuously monitors insulation resistance between the heating elements and the mold body. A drop below the programmed threshold triggers an immediate alarm, helping to avoid insulation failures that can cause cavity damage or operator injury.
• 4 proactive maintenance reminders: The iDouble‑C tracks operating hours, control cycles, and error logs, then issues reminders for Heater, Thermocouple, Electrical, and Cleaning maintenance. These prompts reduce unscheduled downtime and extend the life of the hot‑runner system.
• 999 mold‑parameter storage: Complete temperature profiles, alarm thresholds, and control parameters for up to 999 different molds are stored in non‑volatile memory and recalled by name or ID when the mold is next mounted on the machine. This eliminates manual re‑entry and ensures reproducible settings across production runs.
• Hot‑swappable control cards: A card can be replaced while the system is powered, with the bus automatically recognizing and re‑configuring the new card within seconds. The affected zone is down only during the physical swap, while all other zones continue to regulate normally, avoiding a full system restart.
• 3‑level password protection: Operator, Supervisor, and Administrator levels restrict access to critical parameters while allowing daily setpoint adjustments.

Modular Architecture and Global Communication

• CAN‑Bus, RS‑485, and Ethernet: Native CAN‑Bus links control cards internally; RS‑485 and Ethernet provide external connectivity. The system supports Profinet, EtherNet/IP, Modbus TCP/IP, SPI, and is OPC UA ready—enabling direct integration into Industry 4.0 factories and centralised SCADA platforms.
• Variable‑speed fan control: The airflow‑optimised card cage uses firmware‑controlled fans whose speed adjusts automatically to internal temperature, reducing dust ingress and energy consumption while keeping electronics at the correct operating temperature.
• Customisable UI languages: The C‑View interface can be localised for markets in Europe, the Americas, and Asia, reducing operator training time across multinational production sites.
• LED alarm beacon and SMS/e‑mail alerts: A high‑visibility beacon provides local alarm indication, while networked controllers can send text or e‑mail notifications to maintenance teams, ensuring rapid response to temperature deviations or sensor failures.

Applications

• Automotive hot‑runner systems: multi‑cavity injection molding of connectors, housings, and precision‑engineered components
• Medical molding: cleanroom‑compatible, high‑precision temperature control for syringes, IV components, and diagnostic consumables
• Premium packaging: thin‑wall containers, caps, and closures requiring tight temperature repeatability
• Technical and engineering plastics: high‑temperature resins (PEEK, PPS, LCP) requiring ≤ ±0.5 °C control stability
• Multi‑cavity tools where rapid mold changeovers and consistent parameter recall are critical to production efficiency
• Any injection molding operation seeking to centralise process data via OPC UA, EtherNet/IP, or Modbus TCP/IP
