The APLISENS AR247 is a microprocessor-based digital temperature and humidity controller designed for precise climate regulation in demanding industrial and commercial environments. Combining advanced PID control with autotuning, a dual LED display, and robust IP65 protection, the AR247 provides a highly reliable and user-friendly solution for managing heating, cooling, humidification, and dehumidification processes.

Precision Control with Autotuning PID

• Autotuning PID + Fuzzy Logic: The primary output (OUT1) features an autotuning PID algorithm enhanced by a fuzzy logic function. This automatically determines the optimal P, I, and D parameters during initial start-up, eliminating manual tuning while ensuring a fast process response with minimal overshoot. The PID autotuning can be activated on-demand.
• Multi-Output Control: Three independent ON/OFF outputs (configurable as relay or SSR) can be assigned to control heaters, coolers, humidifiers, or dehumidifiers. Each output is configurable for either heating/humidifying or cooling/drying action with separate hysteresis bands, enabling precise control of multiple devices within a single enclosure.
• Analog Output Flexibility: A standard 0/4-20 mA (or optional 0/2-10 V) analog output can operate in either constant-control mode (directly driving a proportional actuator) or retransmission mode (passing selected measurement values to an external PLC, DCS, or data logger). The 12-bit resolution ensures smooth, high-accuracy signal transmission.

Built for Industrial Environments

• Rugged IP65 Enclosure: The AR247 is housed in a polycarbonate, wall-mounted enclosure that meets IP65 standards for water and dust ingress protection. This allows direct installation in harsh locations such as warehouses, greenhouses, or food processing facilities without requiring an additional protective cabinet.

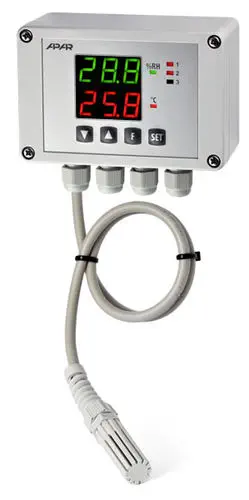

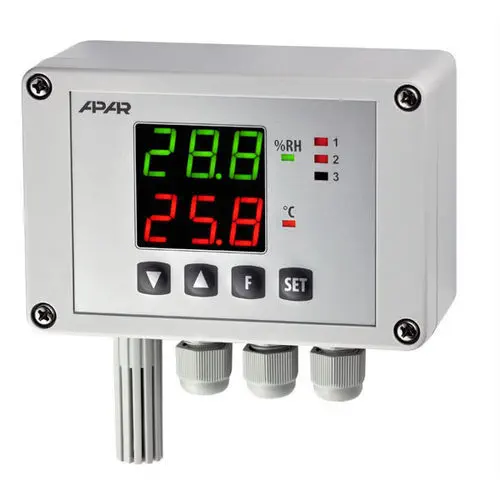

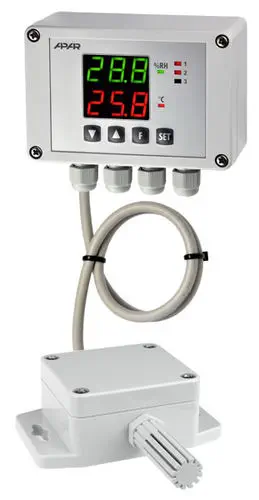

• Flexible Probe Options: Four probe variants are available: integrated with the housing (AR247/1), external on a 1.5m cable (AR247/2), external in a box housing (AR247/3), or mounted on a stainless steel tube (AR247/L150 or L250). The external probes allow the controller to monitor conditions at a distance or within ducts and chambers.
• Dual LED Display: Two 3-digit, 14mm-high LED displays with adjustable brightness provide clear, simultaneous readouts of relative humidity (upper) and temperature or calculated values (lower). The membrane keypad is sealed to IP65 standards, ensuring reliable operation in wet or dusty conditions.

Advanced Features for System Integration

• RS-485 Communication (Modbus RTU): An optional galvanically isolated RS-485 interface enables integration with SCADA, BMS, or PLC systems via the standard Modbus RTU protocol. This allows for remote monitoring, setpoint adjustment, and data logging without needing additional gateways or protocol converters.
• ARsoft-LOG Software: When combined with the RS-485 interface or a dedicated programmer, APLISENS' free ARsoft-LOG PC software allows users to view live measurements, configure single or multiple controllers, and quickly duplicate parameter sets across devices. This significantly reduces commissioning time for projects involving multiple controllers.
• Calculated Values & Multi-Function Inputs: The AR247 can calculate and display useful derived values such as dew point, frost point, and absolute humidity. A programmable BIN digital input and a front-panel function key provide quick access to operating modes, including day/night setpoint switching, manual mode for testing, and keypad lock for security.

Applications

• HVAC and building automation for precise climate control
• Industrial drying and cooling processes
• Greenhouses and indoor agriculture for precise humidity and temperature regulation
• Food and beverage processing and storage facilities
• Pharmaceutical and cleanroom environmental monitoring
• Data centers and telecom facilities for environmental monitoring
• Museums and archive preservation for climate-sensitive storage
