Product Specifications
- Manufacturer
- Additel
- Product Type
- Automated Pressure Calibrator
- Part Number
- ADT761A
- Pressure Range
- Up to 1500 psi (100 bar)
- Control Stability
- 0.003%FS or 0.02 hPa
- Accuracy Options
- 0.02%FS standard, 0.01%FS (precision models), 0.05%FS (ADT761A-LLP)
- Pressure Modules
- Removable internal modules, dual external module ports
- Pressure Types
- Differential, gauge, absolute (with barometer)
- Display
- 7-inch TFT color touchscreen
- Communication
- Wi-Fi, Bluetooth, USB, Ethernet
- Protocols
- HART, Profibus
- Data Storage
- 6 GB, up to 1,000,000 time-stamped readings
- Operating Temperature
- 32 to 122°F (0 to 50°C)
- Compatibility
- ADT 160A series pressure modules
- Calibration
- ISO 17025 accredited certificate with data
- Certifications
- CE Mark
- Documents
- Product Manual, Product Specs
Product Description

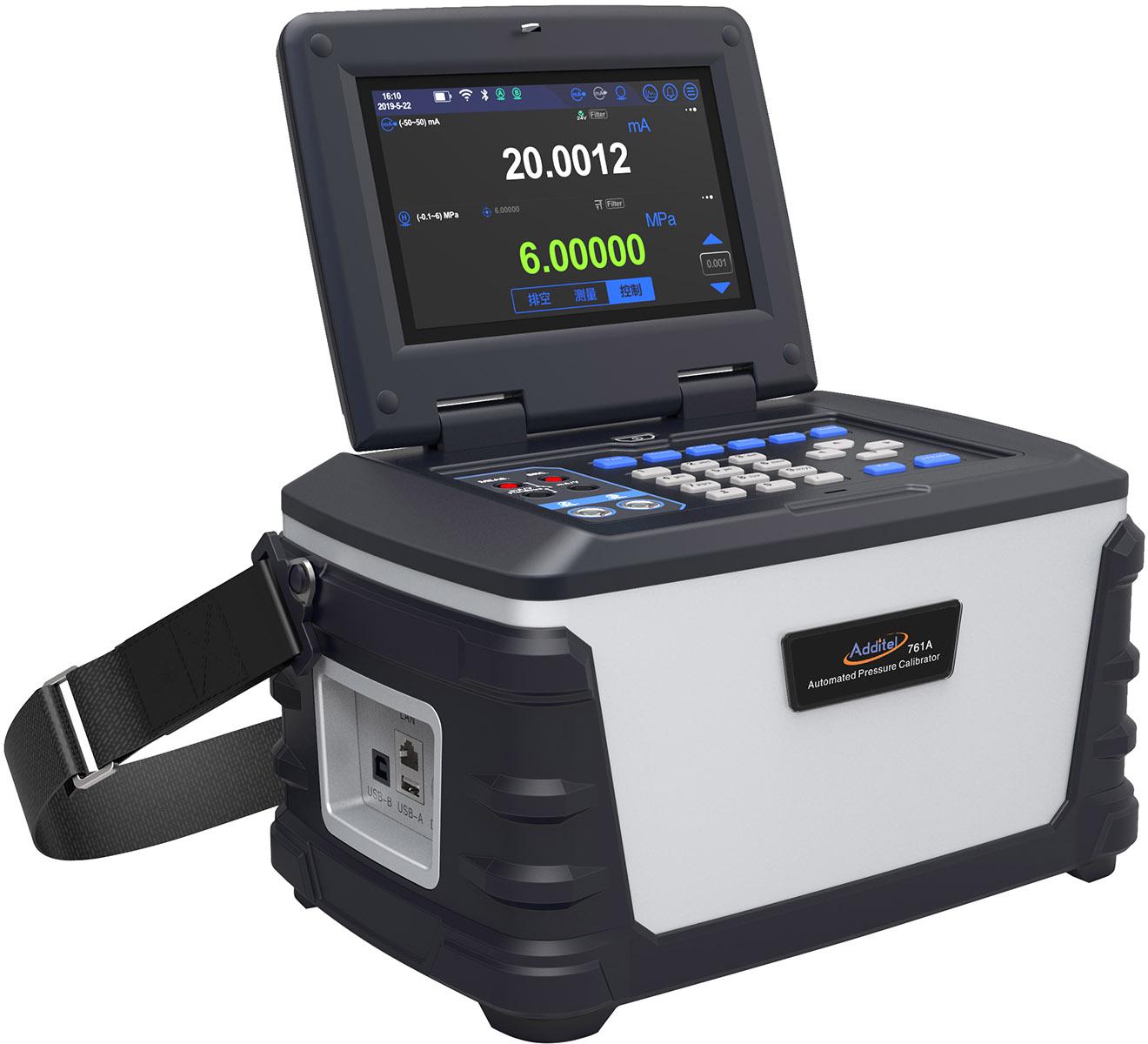

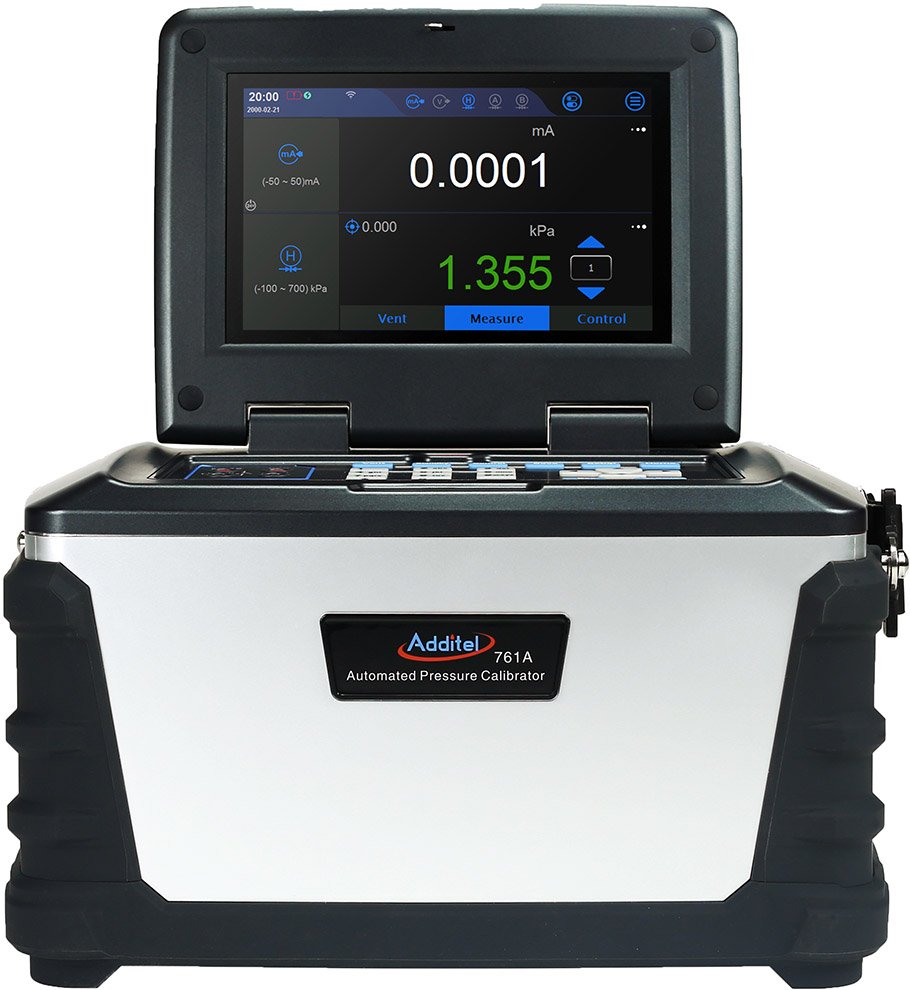

The Additel ADT 761A Automated Pressure Calibrator is completely self-contained and automated with a built-in electric pump for pressure generation and precision control technology. Simply set the desired pressure and watch the calibrator do the work.
The ADT761A features an increased pressure range up to 1,500 psi (100 bar) with control stability to 0.003%FS. Removable internal pressure modules allow multi-range selection, and the calibrator can read two external pressure modules simultaneously. Precision models offer accuracy as low as 0.01%FS.
The 7-inch TFT color touchscreen provides intuitive operation. Wi-Fi, Bluetooth, and Ethernet communications enable remote control and data transfer. HART and Profibus protocols are supported. Battery life has been doubled from the original design.
Data logging capabilities include up to 1,000,000 time-stamped readings stored in 6 GB memory. Each unit includes an ISO 17025 accredited calibration certificate with data. The ADT761A is designed for both field and laboratory use.
