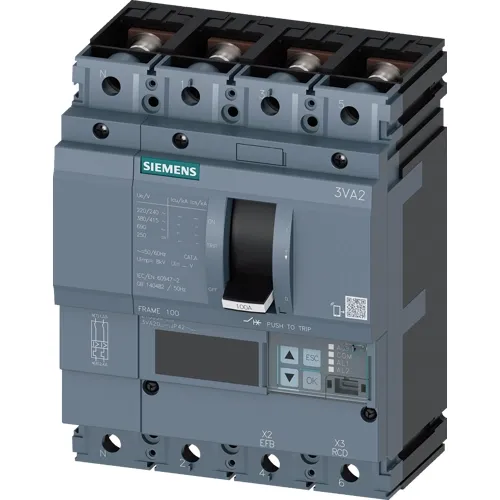

The 3VA2063-5JP42-0AA0 is a 4-pole molded case circuit breaker from the Siemens SENTRON 3VA2 series, engineered for reliable line and system protection in low-voltage power distribution. Equipped with the ETU550 electronic trip unit, it delivers precise LSI protection — adjustable overload (L), short-time short-circuit (S), and instantaneous (I) protection — with fully configurable neutral conductor protection adjustable from OFF up to 160% of the rated current. The breaker uses nut keeper kit terminals for secure high-current lug connections in industrial distribution panels.

Key Protection & Functionality

• ETU550 electronic trip unit with LSI protection: Ir = 25…63 A, Isd = 0.6…10 × In, Ii = 1.5…12 × In.
• Adjustable neutral conductor protection: OFF or 40%…160% of In, configurable via front-panel settings.
• Integrated LCD display for real-time current, voltage, and energy measured values.
• Optional communication: Modbus TCP, Modbus RTU, PROFINET, PROFIBUS (via external modules).
• No ground-fault (G) protection — designed for systems where earth leakage is monitored externally or not required.
• Available mounting versions: fixed, plug-in, or withdrawable (fixed mount on 35 mm DIN rail in this model).

Technical Specifications

• Rated Operating Voltage Ue: 690 V AC
• Breaking Capacity Icu: 55 kA @415 V (Class M)
• Service Breaking Capacity Ics: 55 kA @415 V
• Rated Frequency: 50/60 Hz
• Mechanical Life: 20,000 operations
• Electrical Life: 14,000 cycles
• Power Loss per Pole: 1.8 W
• Dimensions (H × W × D): 181 × 140 × 86 mm
• Degree of Protection: IP40 (front face), IP20 (overall)
• Net Weight: 2.607 kg
• Operating Temperature: -25 °C to +70 °C
• Standard: IEC/EN 60947-2
• Country of Origin: Czech Republic

Installation & Applications

• Mounting: Fixed on standard 35 mm DIN rail, symmetrical nut keeper kit terminals for lug or busbar connections.
• Typical Applications: Low-voltage main distribution boards, motor control centers, generator panels, and infrastructure systems requiring 4-pole switching with independent neutral monitoring and optional remote communication capabilities.
