Product Specifications
- Manufacturer
- Monarch Instrument
- Product Number
- Track-It Voltage/Current
- Type
- 2-Channel DC Voltage/Current Data Logger
- Input Ranges
- 500 mVDC, 1 VDC, 5 VDC, 10 VDC, or 20 mA DC
- Accuracy
- ±0.5% of full scale
- Memory
- Up to 64,000 samples per recording session
- Sample Rate
- 1 sample per 2 seconds to 1 per 24 hours
- Battery Options
- CR2032 (1 year, -20°C to +70°C) or EF65162 (5 year, -20°C to +85°C)
- Clock Accuracy
- ±1 minute per year
- Display
- 4-digit LCD, user programmable
- Alarms
- 2 user-programmable (high or low)
- Communication
- Direct USB connection
- Dimensions
- 4.06 x 0.66 x 1.00 in (10.32 x 1.67 x 1.00 cm)
- Features
- Multiple trigger modes, NIST traceable certificate available
- Documents
- Product Manual, Product Specs (2 Files)
Product Description

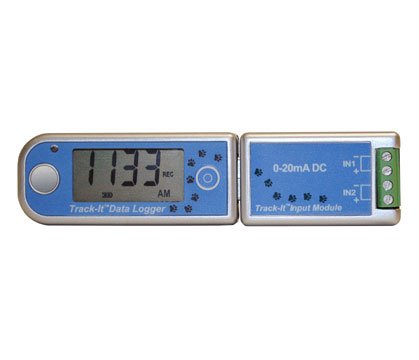

The Monarch Track-It Voltage & Current Data Loggers are two channel battery powered stand alone compact data loggers that record up to 64,000 samples each of DC Voltage or Current data. Units are available in 4 DC voltage ranges (500 mVDC, 1 VDC, 5 VDC, 10 VDC) or for DC current (20 mA).
The unit is easily configured using the included Track‑It Software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours.
The on board data storage is non‑volatile so data will not be lost in the event of a depleted battery. The Track‑It loggers can also be used to record ambient temperature if one or neither input is being used. Information displayed on the LCD is user programmable and can be sequenced by pressing the logger button. A multicolored LED indicator notifies the user of alarms or general activity.
Applications include industrial process monitoring, troubleshooting, productivity monitoring, and remote indication.
