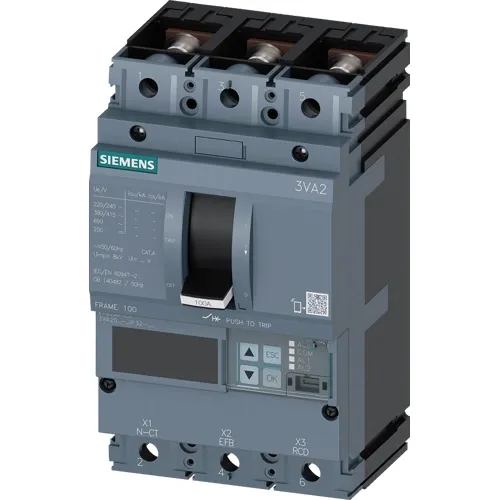

The 3VA2063-5JP32-0AA0 is a 3-pole molded case circuit breaker from the Siemens SENTRON 3VA2 series, engineered for reliable line and system protection in low-voltage power distribution. Equipped with the ETU550 electronic trip unit, it delivers precise LSI protection — adjustable overload (L), short-time short-circuit (S), and instantaneous (I) protection — with neutral conductor protection optionally available via an external current transformer, configurable up to 160% of the rated current. The breaker uses nut keeper kit terminals for secure high-current lug or busbar connections in industrial distribution panels.

Key Protection & Functionality

• ETU550 electronic trip unit with LSI protection: Ir = 25…63 A, Isd = 0.6…10 × In, Ii = 1.5…12 × In.
• Adjustable L-trip delay time (tr): 0.5…25 s with I²t characteristic for precise coordination with downstream devices.
• Neutral conductor protection optionally available via external current transformer, adjustable up to 160% of In.
• Integrated communication function for remote monitoring and data exchange (Modbus TCP, Modbus RTU, PROFINET, PROFIBUS via external modules).
• No ground-fault (G) protection — designed for systems where earth leakage is monitored externally or not required.
• Available mounting versions: fixed, plug-in, or withdrawable (fixed mount on 35 mm DIN rail in this model).

Technical Specifications

• Rated Insulation Voltage Ui: 800 V AC
• Rated Operating Voltage Ue: 690 V AC
• Breaking Capacity Icu: 240 V / 85 kA, 415 V / 55 kA, 440 V / 55 kA, 500 V / 36 kA, 690 V / 2 kA
• Service Breaking Capacity Ics: 240 V / 85 kA, 415 V / 55 kA, 440 V / 55 kA, 500 V / 36 kA, 690 V / 2 kA
• Short-Circuit Making Capacity Icm: 240 V / 187 kA, 415 V / 121 kA, 440 V / 121 kA, 500 V / 75.6 kA, 690 V / 3 kA
• Mechanical Life: 25,000 operations
• Electrical Life: 15,000 operations (at 415 V AC-1), 10,500 operations (at 690 V AC-1)
• Power Loss: 5.4 W total (1.8 W per pole at rated current, hot operating state)
• Operating Temperature: 40 °C to 70 °C (full 63 A rating throughout range)
• Degree of Protection: IP40 (front face, with connected conductors)
• Net Weight: 2.098 kg
• Standard: IEC/EN 60947-2

Installation & Applications

• Mounting: Fixed on standard 35 mm DIN rail, symmetrical nut keeper kit terminals for lug or busbar connections.
• Typical Applications: Low-voltage main distribution boards, motor control centers, generator panels, and infrastructure systems requiring 3-pole switching with optional neutral monitoring and remote communication capabilities.
