Product Specifications

Product Description

The HOBO UA-003-64 Pendant Event Data Logger determines rainfall rates, times, and duration after deployment with most standard tipping-bucket rain gauges. It efficiently gathers and stores momentary contact events and temperature data. Additionally, you gain access to detailed event data. Event data is only stored when it happens for better memory usage.

Use a solar radiation shield for accurate temperature measurement in sunlight applications. The logger measures temperature, events and rainfall. It features relay contact closure or rain gauge "tips" input. Memory capacity ranges from 16K to 23K events (events only) or 25K to 30K data points (events and temperature). A 2m (6ft) cable with 2-wire input is provided. Temperature measurement range is -4 to 158°F (-20 to 70°C) with accuracy of ±0.95°F from 32° to 122°F.

HOBO Data Loggers by Onset
Compare

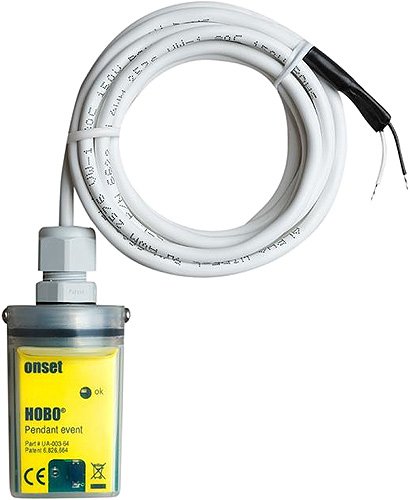

Pendant Event Logger - Rainfall, Temperature | HOBO UA-003-64

Records rain gauge tips and temperature
MPN/Series: UA-003-64

Product Specifications

Manufacturer
HOBO Data Loggers by Onset
Product Number
UA-003-64
Type
Event Data Logger for Rainfall and Temperature
Input
Relay contact closure or rain gauge "tips"
Temperature Range
-20°C to +70°C (-4°F to +158°F)
Temperature Accuracy
±0.53°C (±0.95°F) from 0°C to 50°C
Memory (Events Only)
16,000 to 23,000 events
Memory (Events + Temperature)
25,000 to 30,000 data points
Cable
2m (6ft) with 2-wire input provided
Accessories
Solar radiation shield recommended for sunlight applications
Documents
Product Specs
Pendant Event Logger - Rainfall, Temperature | HOBO UA-003-64
