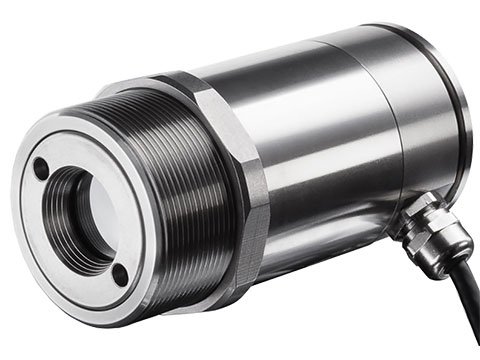

The Optris CSlaser LT infrared temperature sensor has integrated dual laser aiming for accurate alignment and focal positioning of the sensor. It has a -22 to 1832°F temperature range and can function in ambient temperatures up to 185°F without additional cooling. The stainless steel sensor with integrated electronics will easily integrate into an existing system and a wide range of optics allow the CSlaser LT to adapt to many different applications .

The sensor features a 50:1 distance to spot ratio, 8-14µm spectral range, and 150ms response time. Emissivity is adjustable from 0.1 to 1.1. Outputs include 2-wire 4-20mA, open collector alarm, and digital output .

The CSlaser LT features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCSUSBK). A programmable functional input is also included .

The Optris Compact Connect temperature analysis software is available as a free download. The sensor operates on 5 to 30VDC power supply and is IP65 NEMA-4 rated. Cable is sold separately .
