Product Description

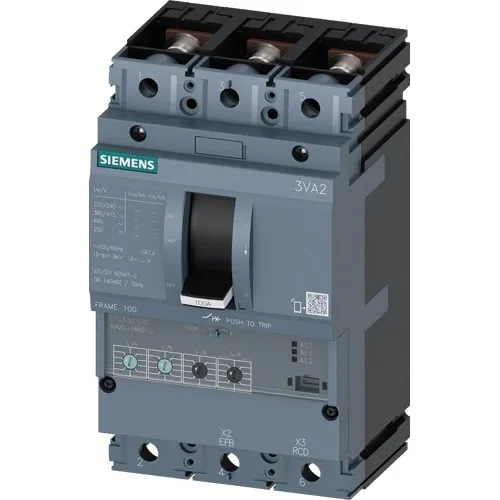

When your high-fault panel demands earth-fault protection but won‘t tolerate extra bulk, the 3VA2063‑6HM32‑0AA0 fits the bill. It combines 85 kA H‑class breaking with an ETU330 LIG trip unit that handles overload, instantaneous and configurable ground‑fault detection—all in a compact three‑pole frame.

Protection Functions

Overload (L): Ir = 25…63 A, I²t characteristic, delay tr = 0.5…17 s.
Instantaneous (I): Ii = 1.5…12 × In.
Ground‑Fault (G): Ig = 0.25…1 × In, time delay tg = 0.1 s or 0.3 s. Detection via residual current summation across all three phases.

No communication, no neutral protection, no extra measurement—just reliable tripping when every kA matters.

Technical Specifications

Parameter	Value
Rated Insulation Voltage Ui	800 V AC
Rated Operational Voltage Ue	690 V AC
Breaking Capacity Icu @415 V	85 kA (Class H)
Service Breaking Capacity Ics @415 V	85 kA
Making Capacity Icm @415 V	187 kA
Mechanical / Electrical Life	25 000 / 15 000 ops @415 V (10 500 ops @690 V)
Power Loss	1.8 W/pole (hot state), 5.4 W total max
Degree of Protection	IP40 (front face), IP20 (overall)
Ambient Temperature	40 °C to 70 °C (full 63 A rating)
Net Weight	2.127 kg
Dimensions (W × H × D)	140 × 181 × 86 mm
Standard	IEC/EN 60947‑2
Country of Origin	Czech Republic

Installation & Application

Fixed mount on 35 mm DIN rail; screw‑flat connector (nut keeper kit) provides a secure, low‑resistance busbar termination.
Suited for high‑fault industrial distribution boards, motor control centres, and generator panels where compact three‑pole protection with earth‑fault monitoring is mandatory.
