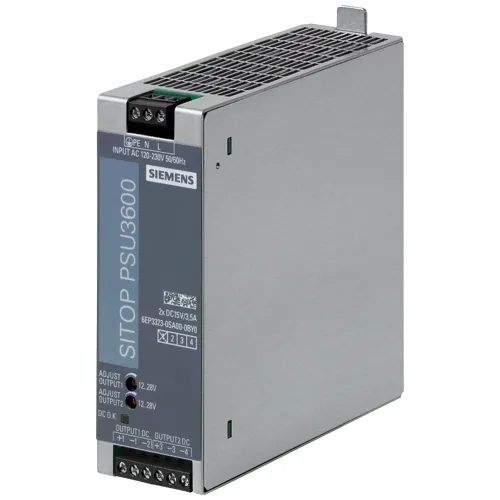

Not every circuit in a control cabinet wants 24 V. The 6EP3323‑0SA00‑0BY0 is purpose‑built for the occasions when you need 15 V — perhaps to feed an older analog transmitter, a ±15 V operational amplifier stage, or a pair of galvanically separated sensor groups. It houses two independent 15 V/3.5 A outputs in a compact 105 W package, with the option to connect them in parallel for 7 A at 15 V, or in series for 30 V. The wide‑range input (85‑264 V AC) means it works on any single‑phase supply worldwide.

Dual Isolated Outputs

• Two potential‑free 15 V rails: each output can power a different device without common‑ground interference. Ideal for bridging sensors and isolated measurement electronics.
• Flexible configuration: wire the outputs in parallel to get 7 A at 15 V, or in series for a 30 V supply — all without additional hardware.

Compact and Efficient

• 88 % efficiency: heat loss is limited to about 14 W at full load, so the unit stays cool even without forced ventilation.
• Small footprint: only 100 × 90 × 90 mm (W × H × D) — fits tightly into distribution boards or machine panels.
