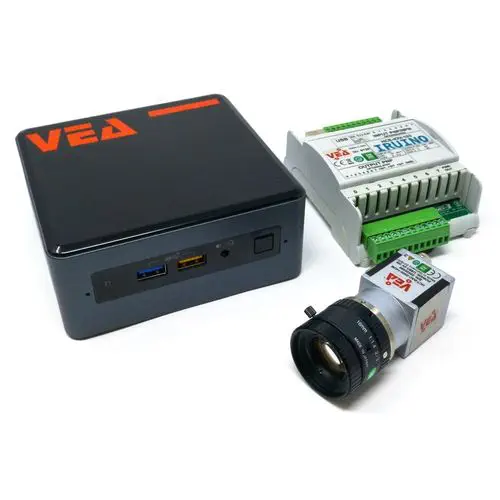

The C-Series is a scalable machine vision processing platform from VEA (Italy). It serves as the central computing and control unit for multi-camera industrial inspection systems, supporting up to 32 cameras simultaneously with a processing throughput of 500 images per second. The integrated Vision-PLC provides real-time I/O control with a 5 ms scan cycle, while the configurable HMI offers a fully customizable operator interface with a built-in graphic editor. The platform stores over 5,000 product programs and can execute more than 1,000 analyses per image.

How does the integrated Vision-PLC simplify inspection system design?

Traditional machine vision setups require separate controllers for image processing and I/O logic, adding wiring complexity, communication latency, and integration cost. The C-Series embeds both functions into a single platform — the vision processor handles image acquisition and analysis while the PLC manages digital I/O, reject gates, conveyors, and communication with plant-level systems. With 8 digital inputs and 8 programmable outputs (modularly expandable to 512 I/O via 64 modules), a single C-Series unit can control a complete inspection station. The 5 ms PLC scan cycle ensures real-time response for high-speed sorting applications.

What deployment configurations does the C-Series support?

The platform is deployed across VEA's hardware configurations: the HUS-TRA-21 portable briefcase system with a 22″ multi-touch monitor, integrated illuminators, optics, and stand for mobile inspection tasks; and the HUS-IND-17 industrial console with a 23″ capacitive touchscreen, pull-out keyboard drawer, and forced-air cooling with high-density filtration for production-floor environments. All configurations share the same C-Series programming environment, allowing programs to transfer seamlessly from portable development units to production consoles.
