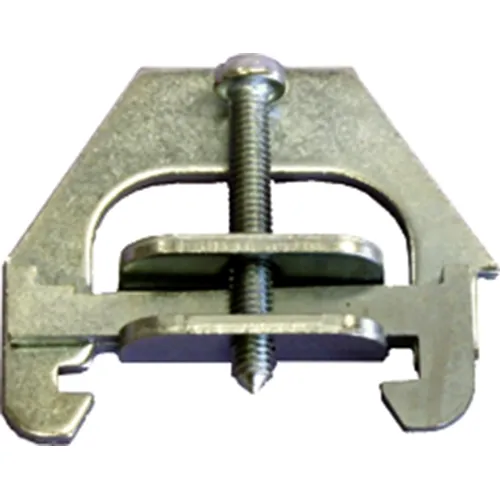

DIN rail devices snap into place easily. They also slide along the rail just as easily — during shipping, during vibration, or when a heavy breaker is levered off. The ABB END end clamp solves this problem by creating a physical barrier that prevents everything behind it from moving laterally.

What It Actually Does
This is an end clamp, sometimes called a retaining clip or end stop. It mounts directly onto the TS35 DIN rail (35 mm width, 7.5 mm height, per EN 60715). Once secured, it blocks the rail channel, stopping any device from sliding past. One clamp at each end of a populated rail section keeps the entire assembly locked in place. Without end clamps, devices can shift over time, potentially losing electrical contact or causing mechanical stress on busbars and wiring.

Where You Need It
In any panel where the DIN rail is oriented vertically, devices will try to slide downward over time. In transportable equipment or applications subject to vibration — marine installations, vehicle‑mounted panels, mobile generators, industrial machinery — devices can shift significantly. End clamps are not optional in these scenarios; they are essential for reliable long‑term performance. Even in static horizontal panels, end clamps prevent devices from being accidentally pushed off the rail during maintenance or rewiring.

Installation
The END clamp clips onto the rail from the side or end and is secured with a screw (not included). The clamp design provides enough flex to fit over the rail profile but holds rigid once tightened. Position the clamp tight against the outermost device for minimal movement. For long rail sections, additional clamps may be installed at intermediate points to prevent bowing or to segment the rail into functional groups.

Numbers That Matter
Manufacturer part number: GJI1001814R0001. EAN: 4012233590902. Bürklin order number: 06N6656. Country of origin: Germany. RoHS compliant (Date of RoHS guidelines: March 31, 2015). SVHC free.

Family Context
The END end clamp is part of ABB's mounting rail accessory family. It is compatible with all ABB System pro M compact devices as well as DIN rail equipment from other manufacturers. For applications requiring even greater retention force, ABB also offers screw‑fix end stops with larger clamping surfaces.
