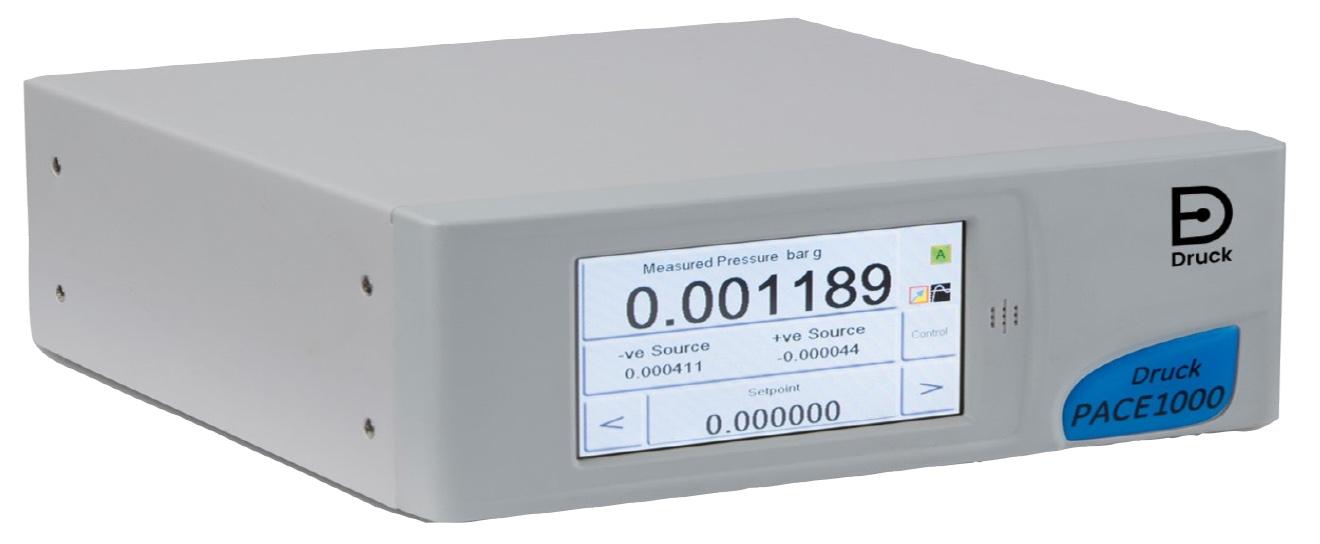

The Druck PACE 1001 barometer is a precision indicator and recorder designed for monitoring in laboratories, airfields and other applications. Bringing together the latest measurement technology from GE, the PACE1001 offers an elegant, fast, flexible and economical solution to barometric indication and monitoring.

The PACE1001 employs digitally characterized pressure sensors which offer the quality, stability and precision. The unit has a pressure range of 750-1150 mbar absolute (10.9 to 16.7 psi or 75 to115 Kpa) and offers three levels of precision to accommodate specification and budget requirements. Optional external IDOS universal pressure modules can be connected to add more pressure measurement capability.

The PACE1001 includes a color, touch screen display that can be configured to indicate pressure measurement simultaneously from up to three sensors either graphically or numerically. Measurements can also be logged to an internal memory over a customized time period, sample rate and trigger. The results are then ready for replay on the display or can be saved to a USB storage device or exported to a PC. Pressure measurements can also be re-transmitted via one of the communication ports.

The Airfield task is supplied as standard with the PACE1001 barometer and enables the user to display QFE, QFF or QNH in pressure units or as altitude in feet or meters. There are also a number of optional features that can be selected: Leak Test, Analog Output, Volt Free Contacts.
